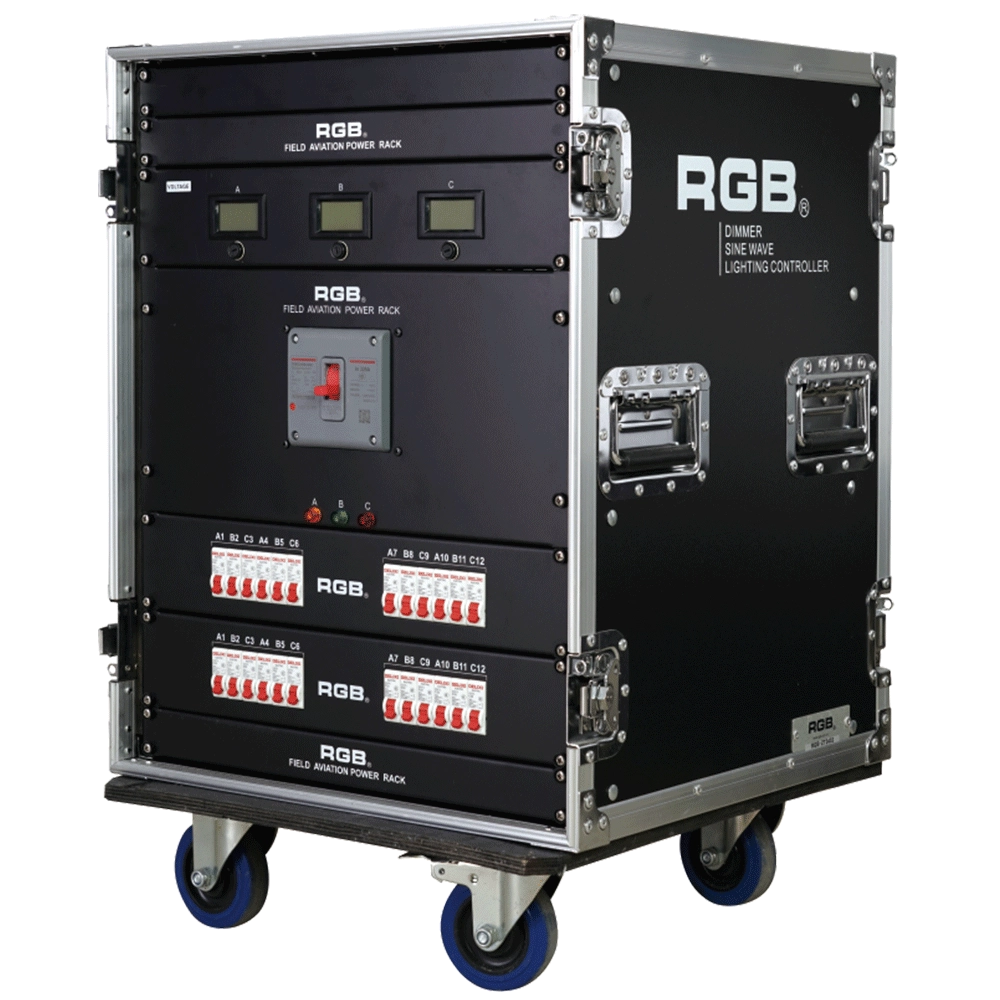

ZT Distribution Box
Series model：ZT1216, ZT2416, ZT3616, ZT4811, ZT2432, ZT3632, ZT4832, ZT2419, ZT3632, ZT4832, ZT2419, ZT3619, ZT4819
RGB-ZT2416 features dual protection functions and is a power distribution product specifically designed for overcurrent and short circuit of electrical equipment. It is the best choice for mobile performance and is suitable for use in computer lamps, conventional lamps, and other equipment.
- Passed international CE certification and RoHS certification
- Aviation box design
- Three-phase 160A, 225A, 250A main air switch control; liquid crystal digital display voltmeter and ammeter
- Each channel has an independent circuit breaker control output (16A to 63A)
- Optional output circuits: 12, 24, 36, 48, etc.

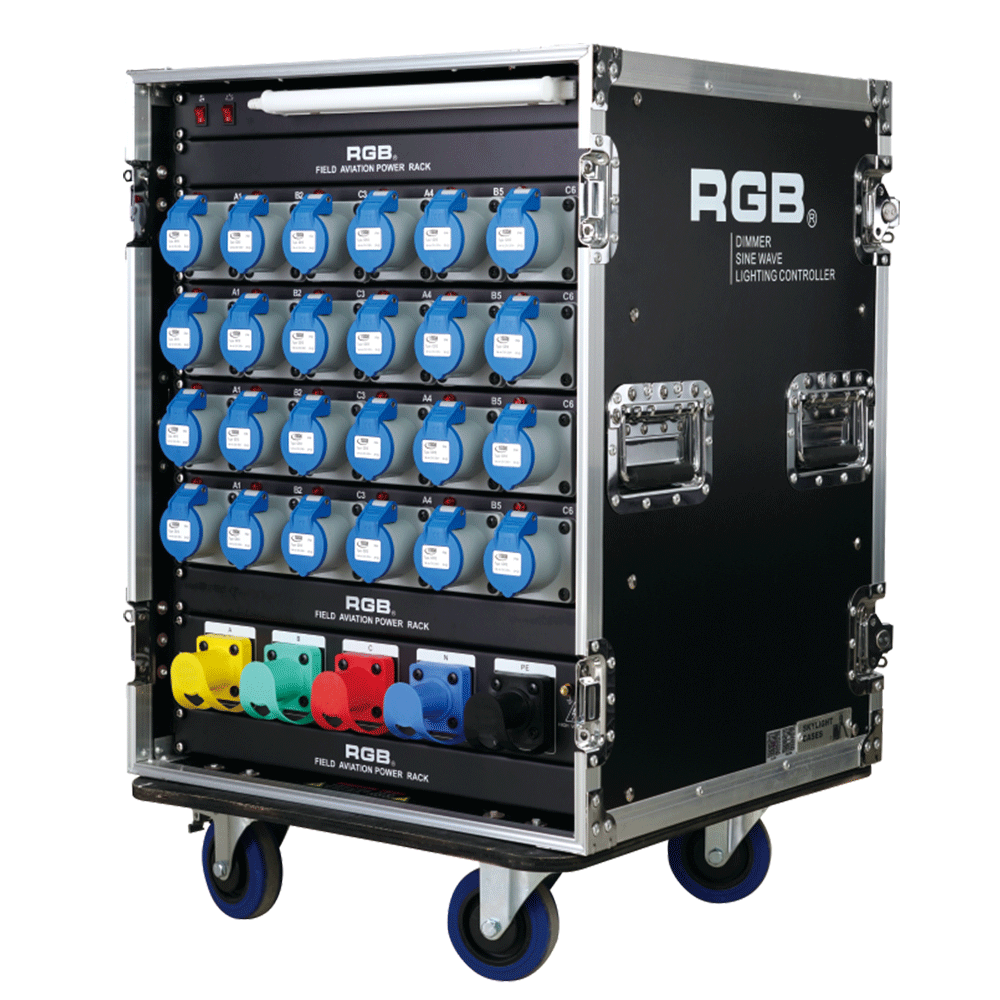

- Optional 16A and 32A waterproof sockets for output

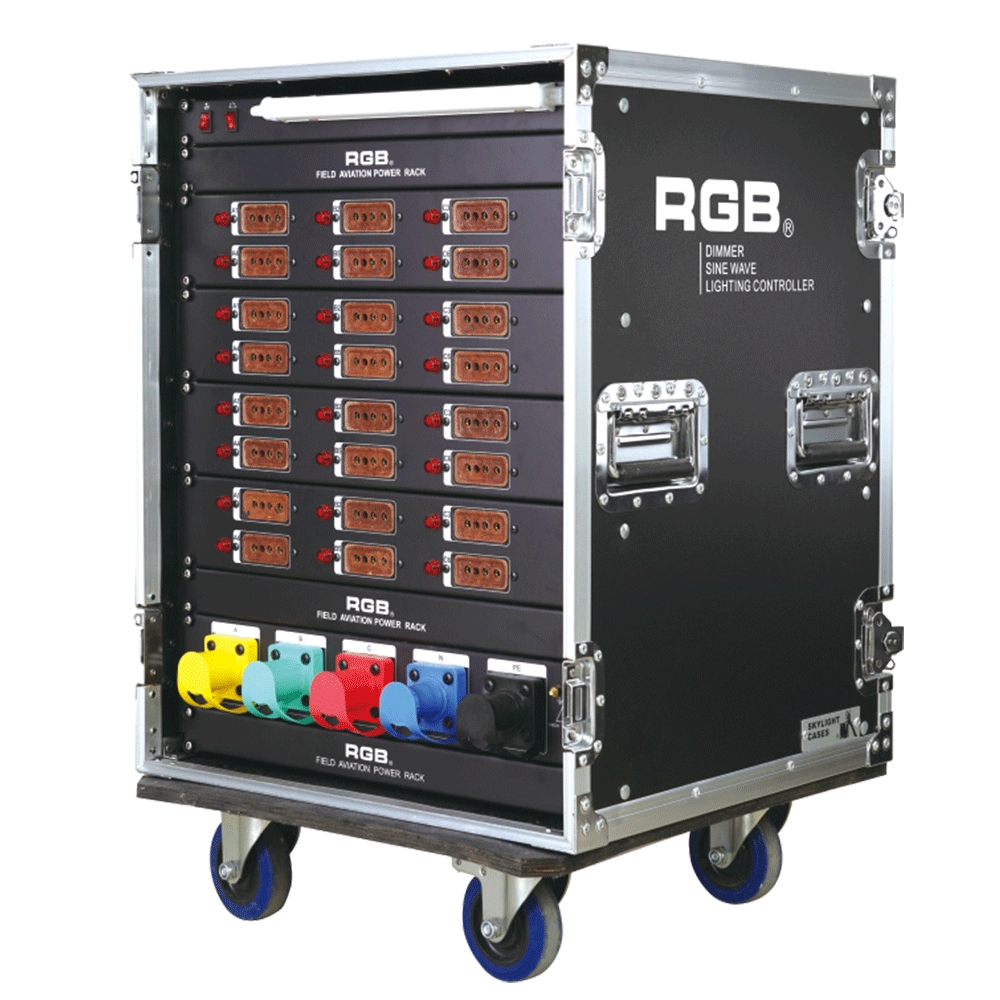

- Optional 32A and 40A bakelite sockets for output
- Optional 19-core socket output
- Three-phase five-wire 400A rhino plug input
- Equipped with a working light for illumination
- Customizable
Standard configuration of appearance：
- Apparent current: 0–250V
- Three-phase main circuit breaker
- Each channel has an independent air switch control output
- 400A Rhino socket power supply: A, B, C are male sockets (yellow, green, red); neutral and protective grounding are female sockets (blue, black)
- Normal working conditions:
• Ambient temperature: 0℃ to +45℃
• Relative humidity: 40% to 80%
• Atmospheric pressure: 0.8 to 1.6 standard atmospheres
• Working environment: Good ventilation, free from excessive smoke and dust
Main equipment parameters：
- Power input: Three-phase five-wire
- Grounding: The back panel of the chassis is equipped with reliable grounding bolts
- Insulation resistance: > 2MΩ/1000VDC
- External dimensions(mm): (Modular front and rear panels, customizable according to customer requirements)
-
Product Model Depth Width Height ZT1216, ZT2416, ZT3616, ZT4811, ZT2432, ZT3632, ZT4832, ZT2419, ZT3632, ZT4832, ZT2419, ZT3619, ZT4819
680 530 695
ZT2419+1216 Distribution Box
ZT2419+1216 features dual protection functions and is a power distribution product specifically designed for overcurrent and short circuits in electrical equipment. It is the best choice for mobile performance and is suitable for use in computer lamps, conventional lamps, and other equipment.

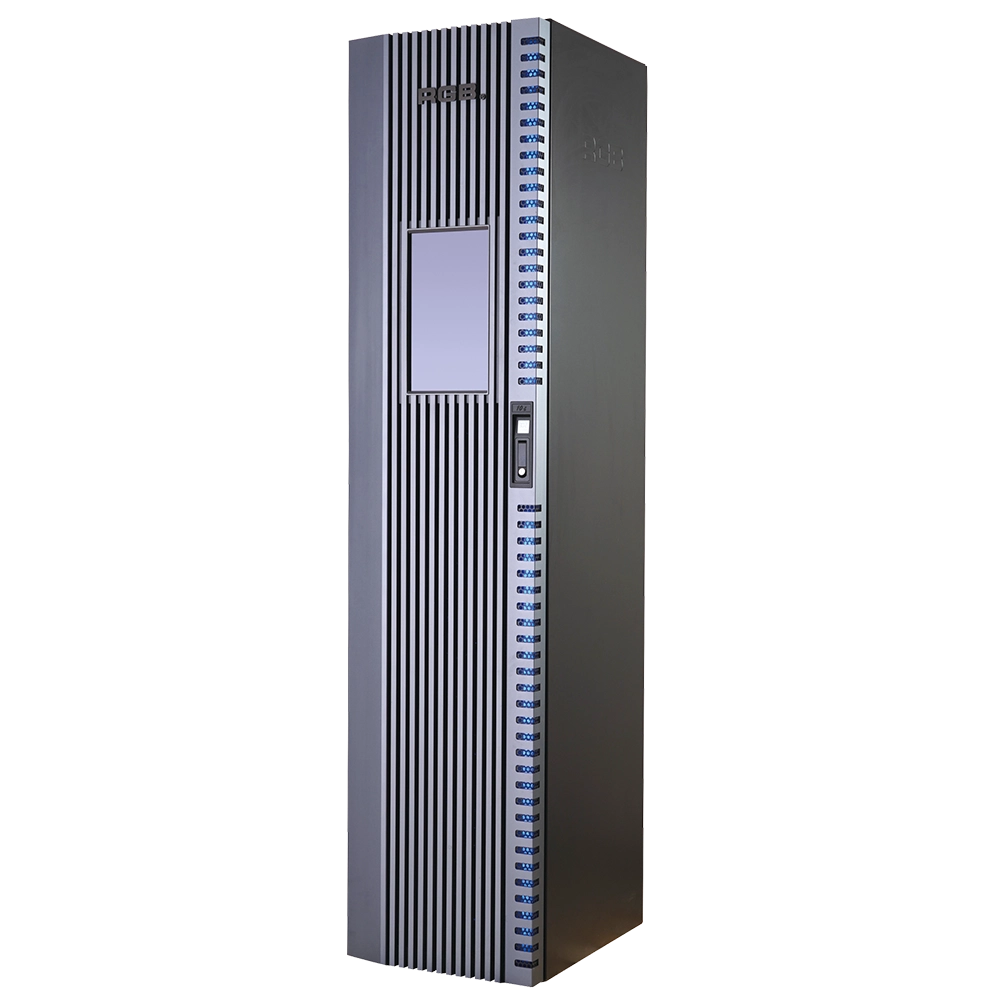

10i Visual Dimmer/Relay Racks
10i is the world's leading visual artificial intelligence dimming rack, integrated with 5G technology, a full digital trigger, sine wave, thyristors, relays, mixed thyristors and relays mixed sine wave and relays output configurations, a unique gold-plated plug-in process, a high-performance protection level, an industrial-grade aluminum alloy profile and other new technologies and advanced process designs and manufacturing.
It is suitable for the lighting control needs of different places such as high-standard grand theaters, TV stations, gymnasium and environmental intelligent lighting.

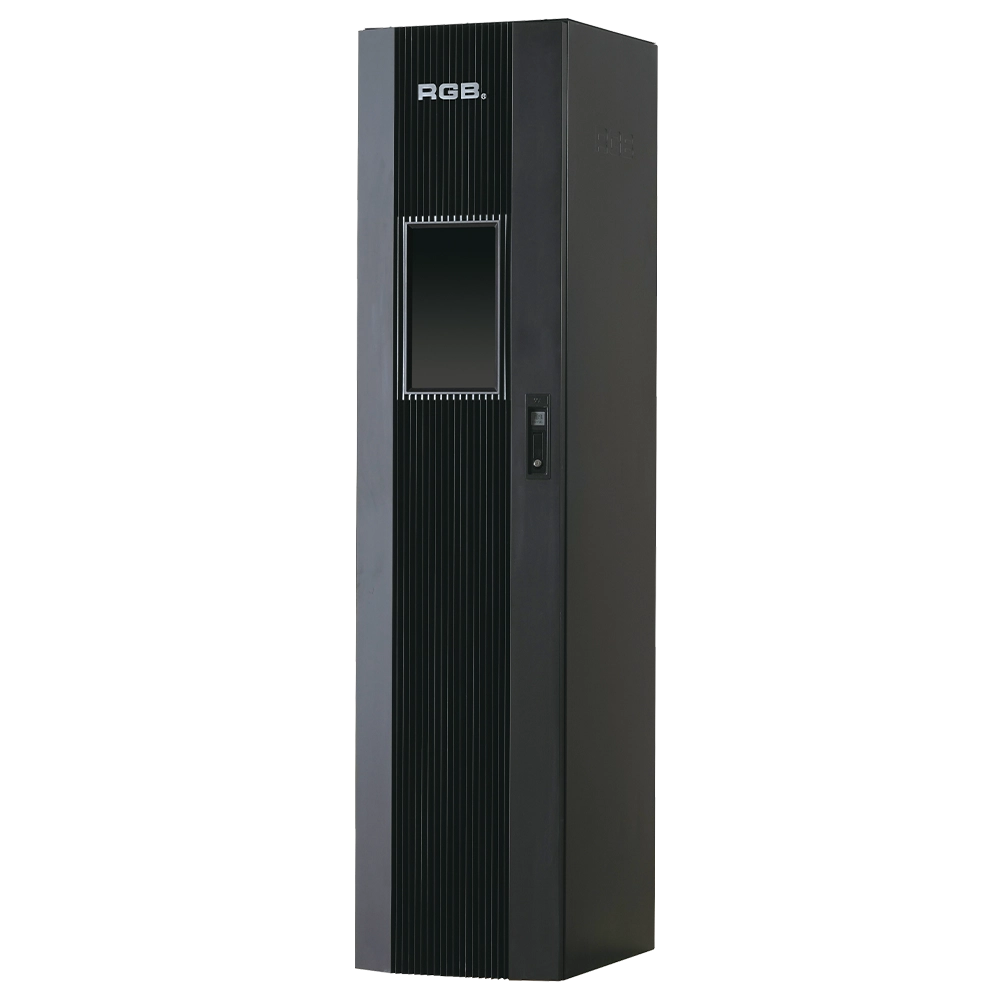

9i intelligent network Dimmer/Relay Racks
9i is an artificial intelligence dimming racks independently developed by RGB, which has completely independent core technology and obtained software Copyrights, all digital electrodeless trigger and multi-backup independent CPU central processor technology. It has a variety of output configurations such as sine wave, thyR, relay and dimming relay mix, and supports visual lighting control system and visually displays the online and offline status of dimming racks. Realize remote monitoring, editing and setting of relevant parameters.
It is suitable for the lighting control needs of different places such as high standard grand theater, TV station, gymnasium and environmental intelligent lighting.
8i Intelligent Network Dimmer/Relay Racks
8i is RGB independent research and development, with completely independent core technology, software Copyrights, full digital electrodeless trigger dimming cabinet, with multiple backup electrodeless trigger control technology, with sine wave, thyristor, relay, dimming relay mixed output configuration, support visual lighting control system, intuitive display dimming cabinet online and offline status. Realize remote monitoring, editing and setting of relevant parameters.
It is widely used in performing arts and cultural venues such as theater, concert hall, multi-function hall, cultural travel and performing arts, TV station, gymnasium, auditorium, commercial art lighting and so on.
