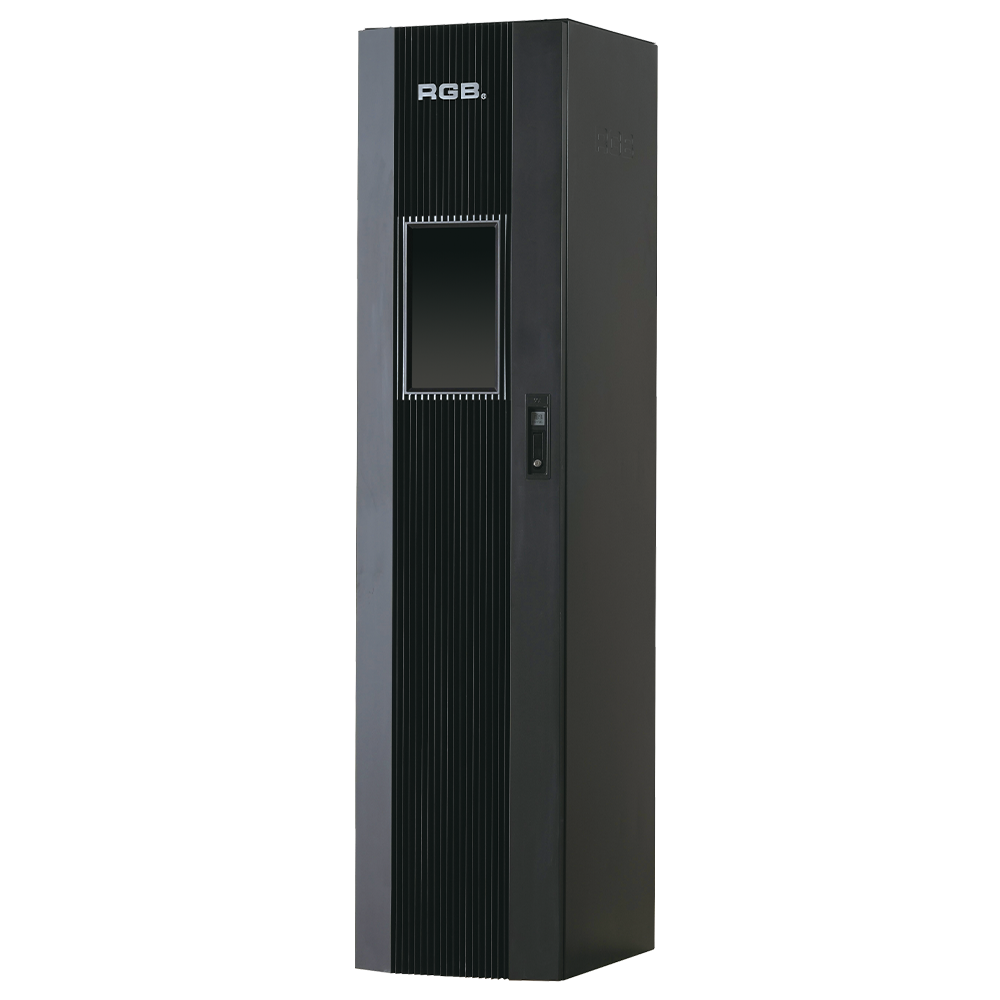

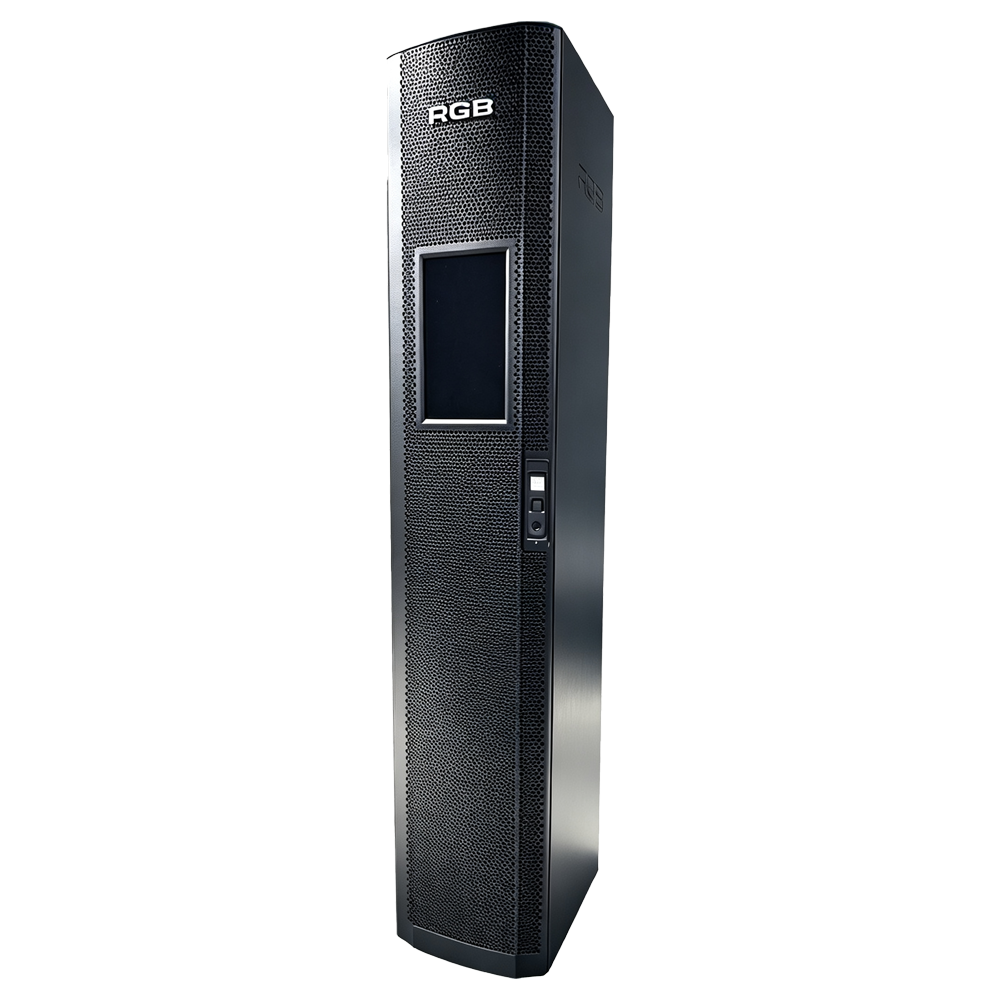

G11 Intelligent network reporting type Relay cabinet

•    Complies with international testing standards such as EN61000-2014, EN55103.1-2009, EN55103.2-2009, and national standards GB/T 13582-1992, GB/T14218-2018, GB/T7251.12-2013, among others;

•       Obtained CQC certification and certificate, CE certification and certificate, third-party and EMC testing and report obtained;

•       Visual monitoring system: Real-time device monitoring is achieved under protocols such as sACN, Art-Net, RGB-Net, and RDM, intuitively showing the status of devices online and offline, and using blue, green, and gray colors to show the connection status between devices (optional);

•       Multi-backup stepless trigger control technology: Each module has an independent CPU central processor, enabling full digital DMX decoding and independent pass-through control functions, with no interference to ensure load balance among A, B, and C phases. It automatically recognizes loop address codes and arranges them in natural numeric order, enabling multi-system, multi-decoding, multi-backup, and multitasking operations.

•       Intelligent recognition and automatic switching control function: The control system automatically identifies resistive, non-resistive, or no-load loads based on load characteristics, and automatically switches to the corresponding operating mode;

•       Relay efficiency compensation technology: relay operates at a high voltage < 350V, extending relay service life by more than 10 times and load lamp lifespan by up to 50% (optional);

•       Unlimited dimming control technology: Achieves zero idle multi-link address codes in network and DMX communication (e.g., the starting address of the sixth 96-circuit pass-through cabinet can be set to 481, and so on), and the starting address code can be set arbitrarily; {Network cannot achieve zero address idle} DMX signals can be implemented

•       Bilingual system: supports Chinese and English display, switch between freely;

•       Wired remote control: system pass-through control, detecting single and multiple DMX network signals simultaneously, capturing DMX network signals, brightness percentage, voltage, temperature, operating mode, etc. in real time;

•       Dual LCD display: The cabinet body uses a color touch LCD display to monitor cabinet parameters. Each module's LCD display shows the working status;

•       When there is no power supply, it can independently monitor real-time temperature and humidity of the working environment 24 hours a day;

•       Cabinet body display screen:  Color touch LCD display for intelligent display, real-time monitoring of cabinet operating status, while simultaneously controlling and setting parameters such as on-site DMX address, dimming curve, operating mode, network, initialization, online module, cabinet number, starting address, operating mode, preheating value, and self-diagnosis;

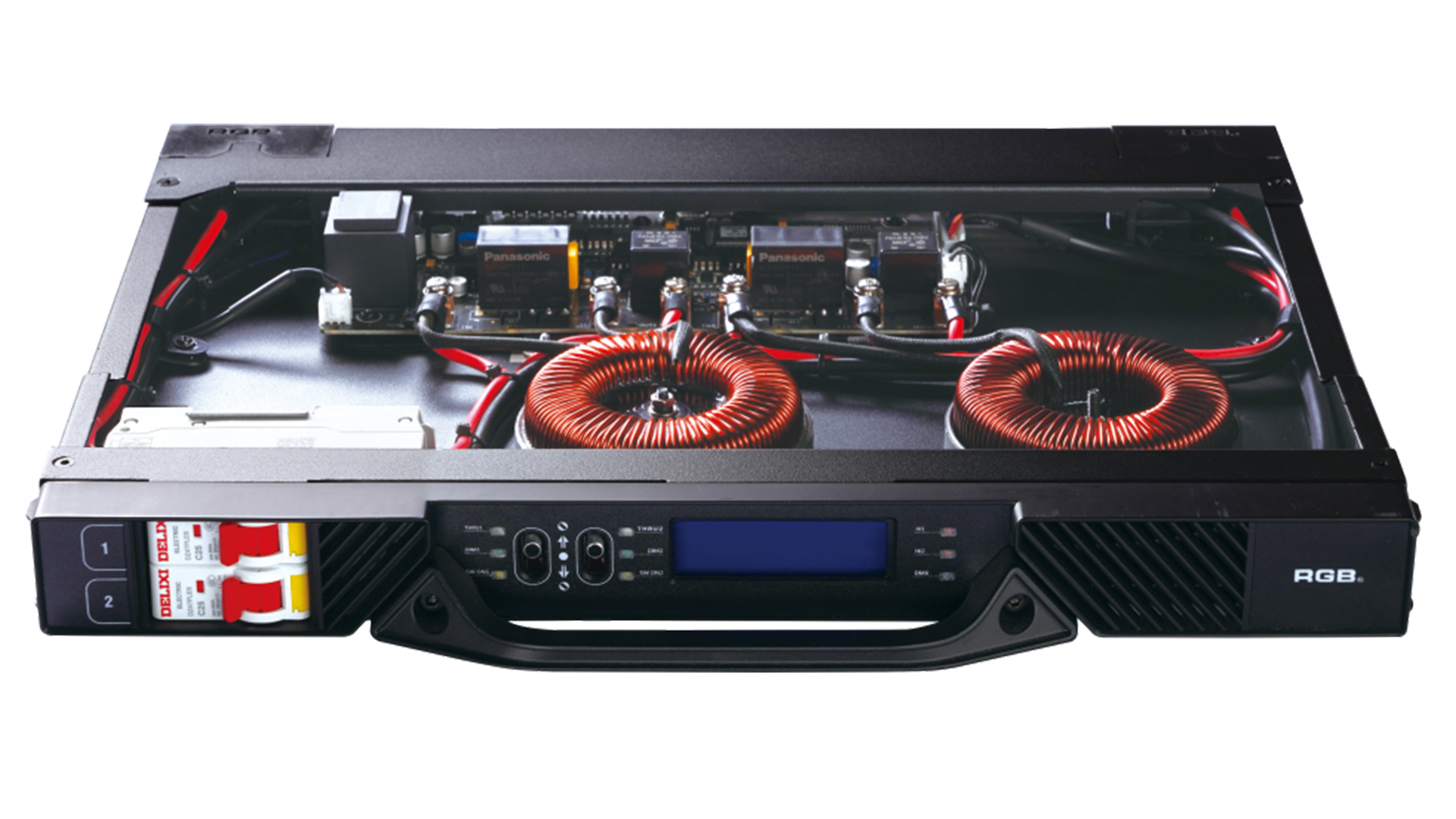

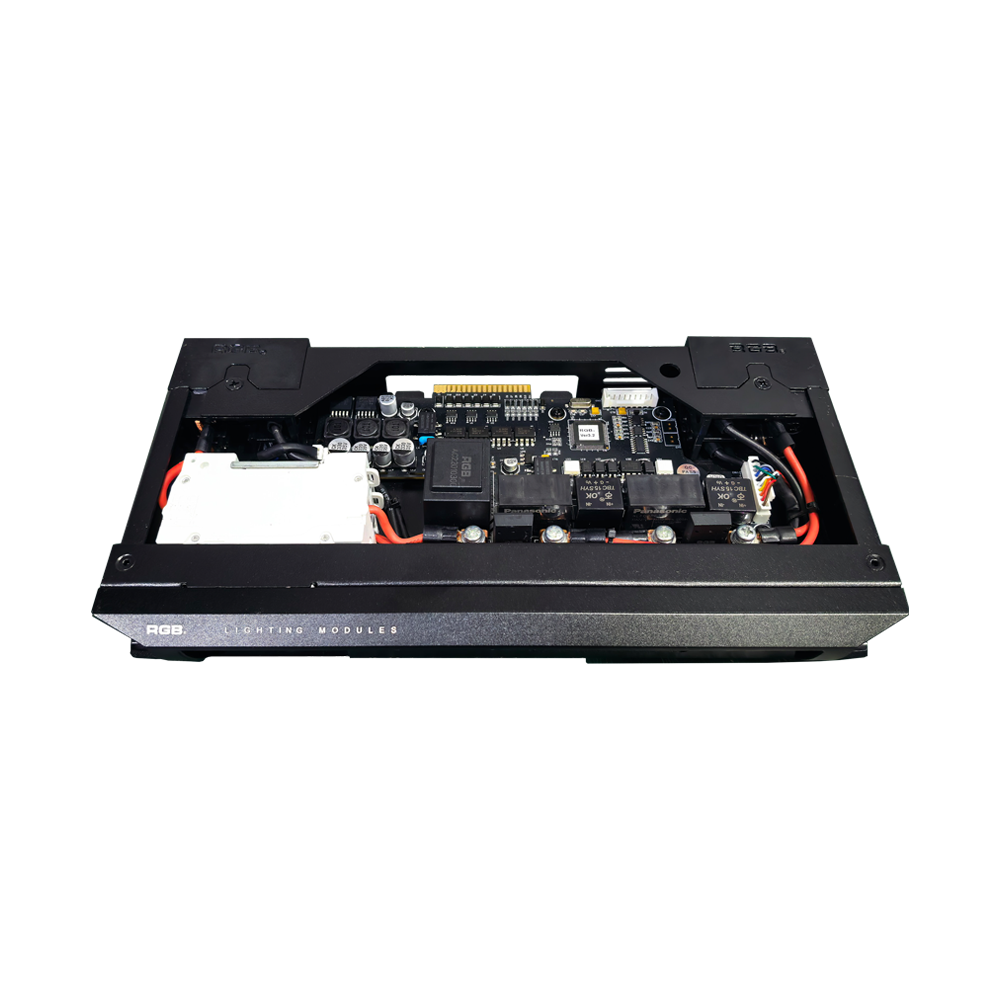

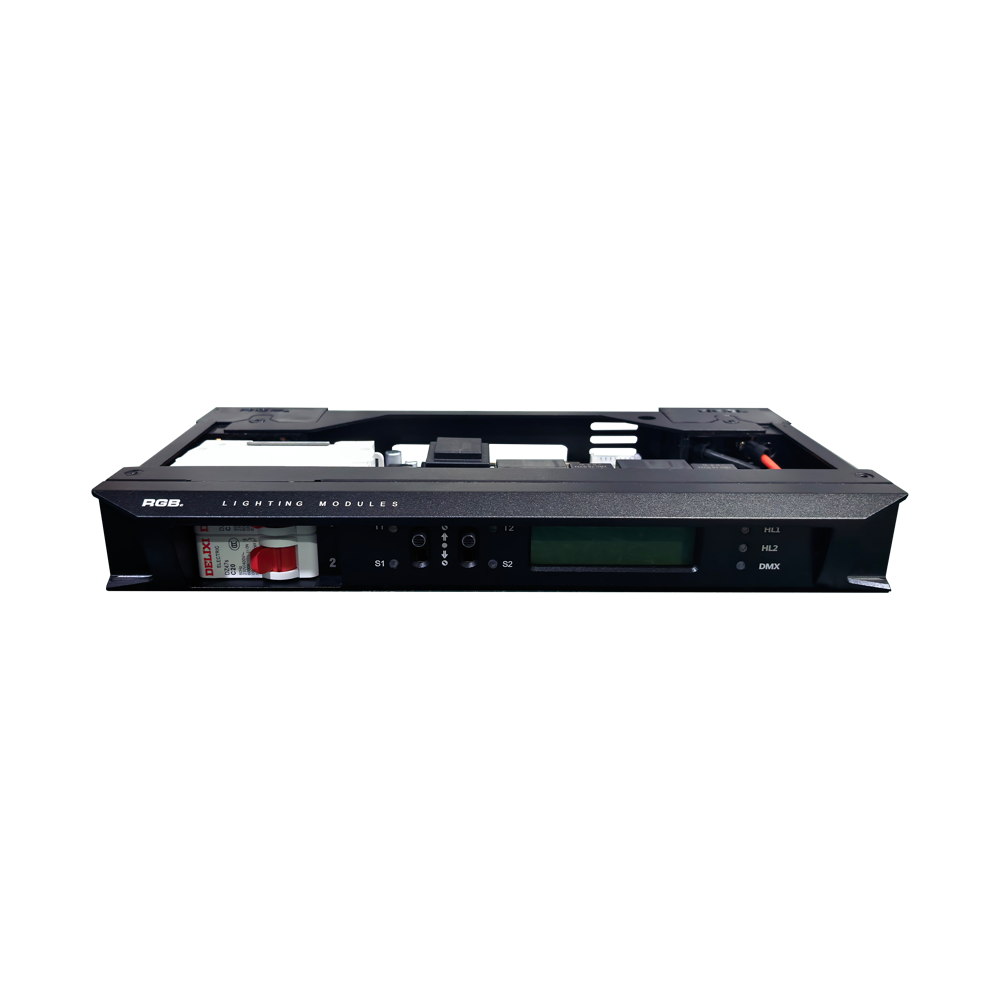

•       Module Display: Each module comes with its own LCD display showing parameters such as circuit address, load phase, dimming brightness, operating mode, and switch status. It also has independent LED operating status indicators, manual dimming/pass-through switching, and the highest priority emergency switch mode.

•       Remote feedback, remote PC display and setup functions: Remote monitoring of the current operating status of the large cabinet , including remote PC display and settings of main parameters such as large cabinet initialization, factory default reset, operating mode, short-circuit protection count, dimming settings, network protocols, preheating values, etc.;

•       Dual DMX512, RDM, RJ45, fiber input methods, supporting full network protocols sACN, Art-Net, and RGB-Net;

•       Supports app modes on both Android and iOS platforms (optional);

•       Mobile touchscreen: Built-in system mobile touchscreen, supports parameter settings for pass-through cabinets and dimming and control of the entire system pass-through cabinet (optional);

•       Pre-stored 25 dimming curves and ≥999 custom dimming curve settings;

•       Wireless WIFI control: supports wireless remote dimming (optional);

•       Features debugging and light finding, emergency dimming, "field" editing, backup scene recording, editing, and playback functions, with ≥999 scenes;

•       Emergency Scene Recording: When all control signals suddenly interrupt, the system automatically maintains the last scenario;

•       Smart fan functions: Supports four function options: low speed, medium speed, high speed, and smart mode. When Smart is selected, it automatically switches to stop, low, medium, and high speed modes based on the internal operating temperature of the large cabinet.

•       Dual backup power supply system: Equipped with power status indicators and alarms; if the main power fails, the backup power supply can be immediately activated;

•       Hot-swappable function: supports module plugging, swapping, and interchangeability during normal live operation, plug-and-play functionality;

•       It features selectable automatic voltage compensation; when the input power supply voltage varies between 180-240V, the output voltage remains unchanged, ensuring the lamp's brightness remains unchanged (optional);

•       Equipped with selectable automatic load testing functions, accurately detecting load conditions such as open circuit, short circuit, and three-phase balance;

•       Installation, commissioning, and maintenance of lock-equipped rear doors: standard wiring and emergency fault troubleshooting can be standardized at any time;

•       Dynamic preheating and recording functions: energy-saving and extending lamp lifespan, detecting power consumption for each load (optional);

•       High-efficiency, energy-saving, and environmentally friendly control technology: Power factor ≥0.98, improving energy efficiency and reducing reactive power loss of loads;

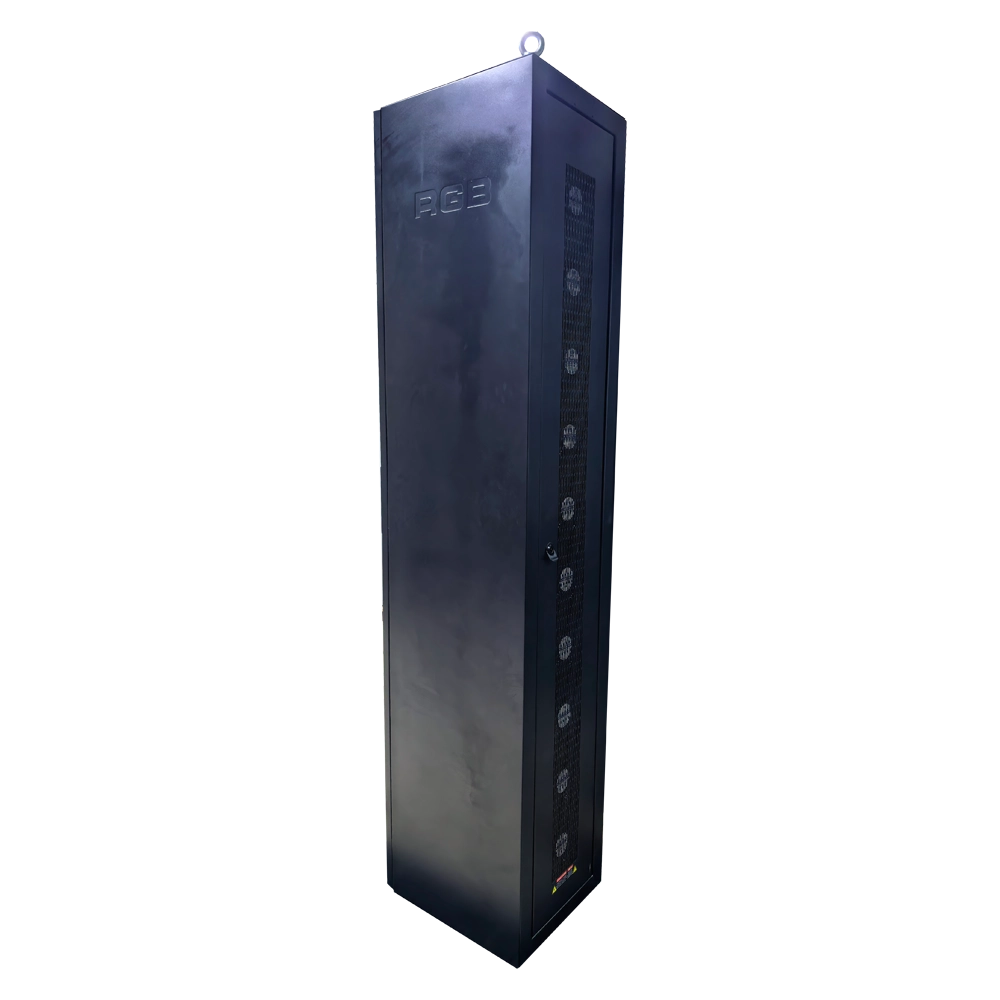

•       Unique protective cabinet structure: Made of high-quality galvanized materials to enhance moisture-proof, corrosion-resistant, and dustproof performance, ensuring system safety and reliability;

•       Supports independent output modes: relay output;

•       Module unit selection: Relays compatible with the same DC cabinet operating simultaneously, without interference;

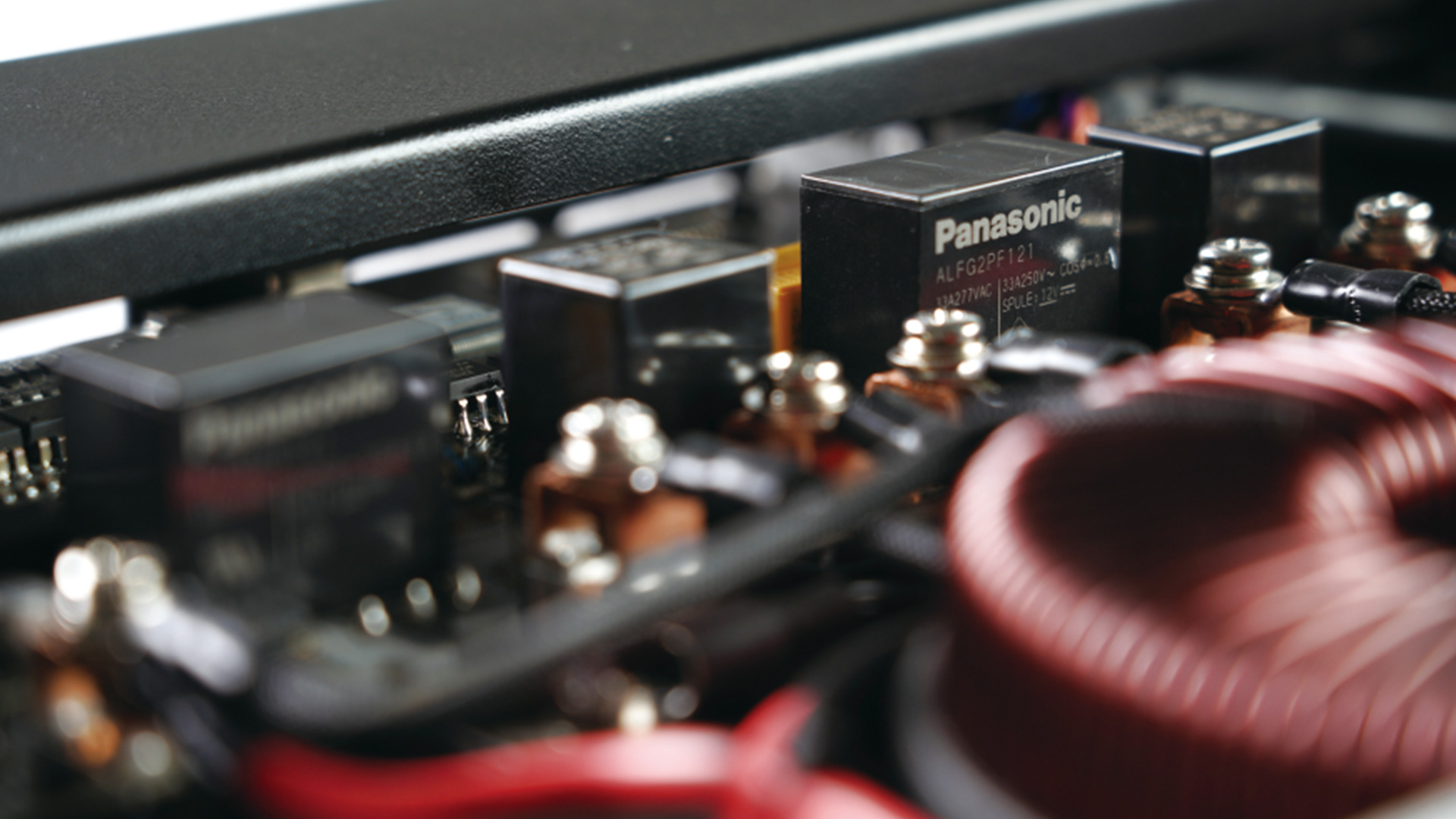

•       High-quality industrial-grade relays: direct DC trigger control, highly efficient resistance to instantaneous pulse currents, optional high-quality mechanical locking relays;

•       Unique high-efficiency heat dissipation design: excellent airflow system design, aluminum alloy module housing, excellent heat dissipation performance, extended service life;

•       Two modes: 60-circuit and 96-circuit;
