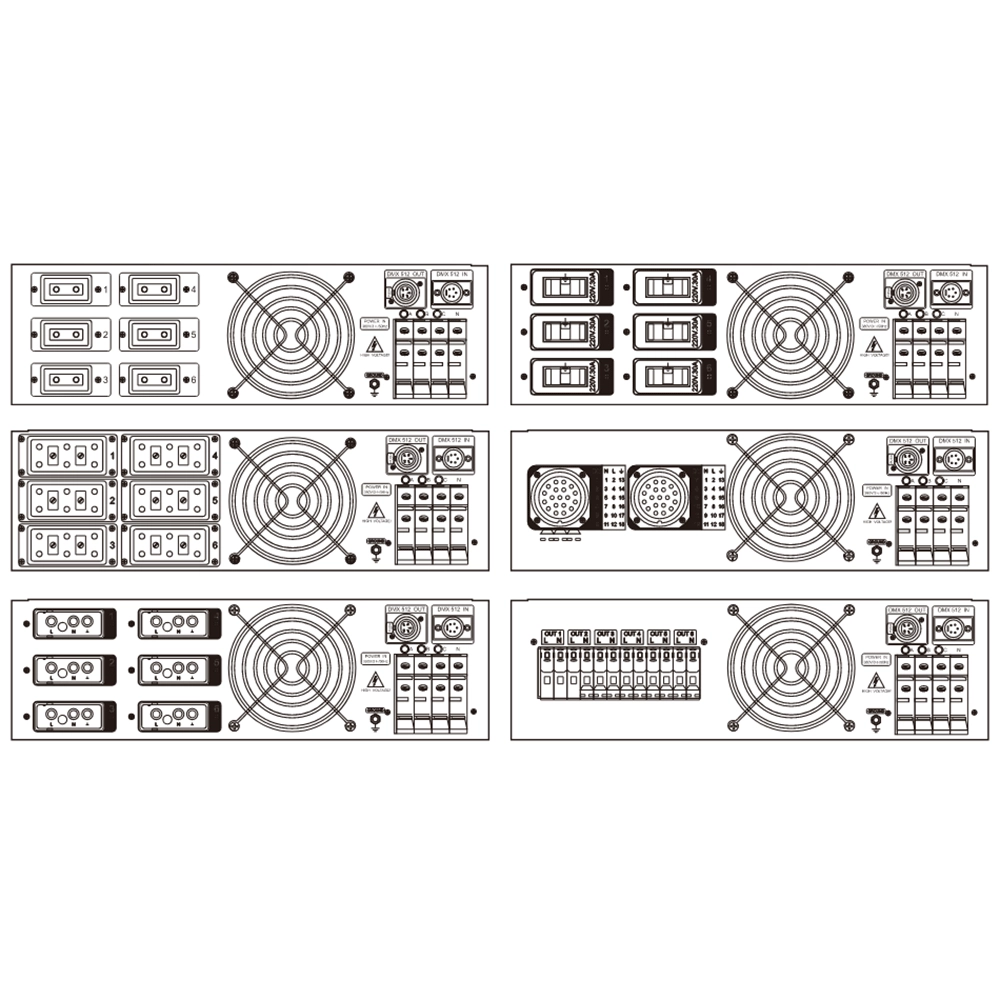

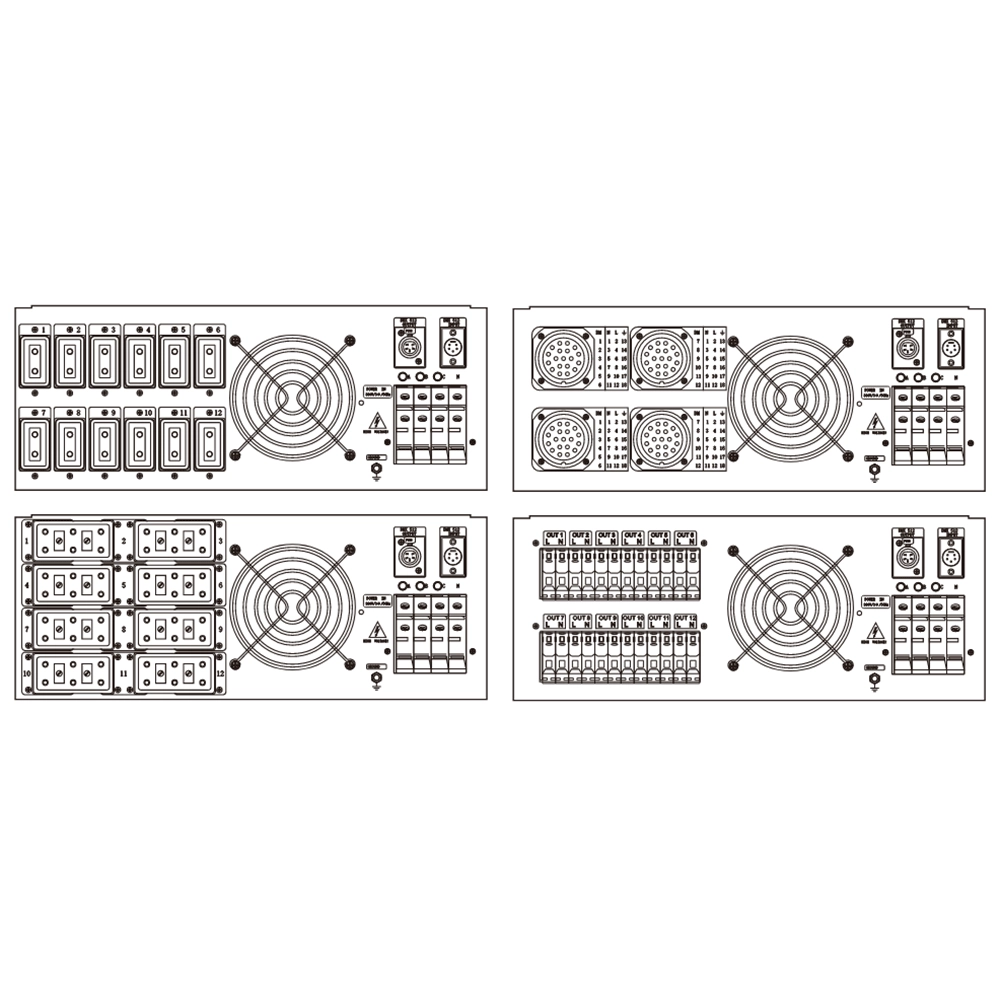

Alloy Relay Packs
High-performance DMX512 relay dimming unit with 512 addressable circuits, phase-loss protection, dual-signal amplification, 20A output per channel, and robust design for reliable stage and mobile lighting applications.
- Output control signals that comply with the provisions of the USITT DMX512 (1990) protocol
- Large-capacity circuits, up to 512 relay circuit numbers
- Address code selection adopts a convenient and intuitive decimal dip switch, which can directly select the box number or the relay circuit number; the combination is flexible and convenient
- Can be used in three-phase, two-phase, and single-phase systems, with phase loss protection (the unaffected phases continue to work normally); can also be connected to other phases when a phase is missing
- Two-way amplifier with DMX-512 signal, preventing high-voltage dimming light introduction
- Air switch fuse with automatic shut-off capability for overcurrent protection
- Photoelectric isolation to stabilize the trigger circuit
- Optimal ventilation and heat insulation design to ensure stable and reliable operation
- Large output power: each output reaches a maximum of 220V–20A, with a total of 12 circuits
- Suitable for mobile performances and compatible with resistive or inductive loads within the rated power range
⦁ Power supply: Three-phase four-wire, dual-phase or single-phase power supply with grounding wire, single-phase 220±10%, 50Hz/60Hz
⦁ Control signal: DMX-512 (1990) signal
⦁ Rated power: 220V–20A
External dimension (mm)：
|
Product model |
Depth | Width | Height |
| 612K | 530 | 480 | 185 |
| 712K | 530 | 480 | 185 |
Net weight (kg)：
| Product model | Weight |
| 612K | 15 |
| 712K | 15 |
7i Dimmer/Relay Racks
7i is RGB independent research and development, with completely independent core technology, full digital decoding technology dimming racks, using a dual system, double decoding, double trigger, and duplex dual backup central decoding processor, with thyristor, relay, dimming relay mixed and other output configurations, supporting a visual lighting control system, intuitive display of dimming racks' online and offline status, and remote monitoring.
It is widely used in performing arts and cultural venues such as theaters, concert halls, multi-function halls, cultural travel and performing arts, TV stations, gymnasiums, auditoriums, commercial art lighting and so on.
10i Visual Dimmer/Relay Racks
10i is the world's leading visual artificial intelligence dimming rack, integrated with 5G technology, a full digital trigger, sine wave, thyristors, relays, mixed thyristors and relays mixed sine wave and relays output configurations, a unique gold-plated plug-in process, a high-performance protection level, an industrial-grade aluminum alloy profile and other new technologies and advanced process designs and manufacturing.
It is suitable for the lighting control needs of different places such as high-standard grand theaters, TV stations, gymnasium and environmental intelligent lighting.
9i intelligent network Dimmer/Relay Racks
9i is an artificial intelligence dimming racks independently developed by RGB, which has completely independent core technology and obtained software Copyrights, all digital electrodeless trigger and multi-backup independent CPU central processor technology. It has a variety of output configurations such as sine wave, thyR, relay and dimming relay mix, and supports visual lighting control system and visually displays the online and offline status of dimming racks. Realize remote monitoring, editing and setting of relevant parameters.
It is suitable for the lighting control needs of different places such as high standard grand theater, TV station, gymnasium and environmental intelligent lighting.
CP6100 Light Control System
The lighting control host is the main control device for theater stage lights, work lights, environmental lighting, commercial art lighting, sports venue lighting, and other places. By connecting the dedicated lighting control panels CP6104 and CP6108, it realizes the central control of the lighting system, supports a visual lighting control system, and intuitively displays the online and offline status of CP6100. Realize remote monitoring, editing, and setting of corresponding parameters.
It is widely applicable to theaters, cinemas, auditoriums, stadiums, museums, exhibition halls, cultural tourism performances, commercial art lighting, and other places.
