8 series network mixed portable silicon box

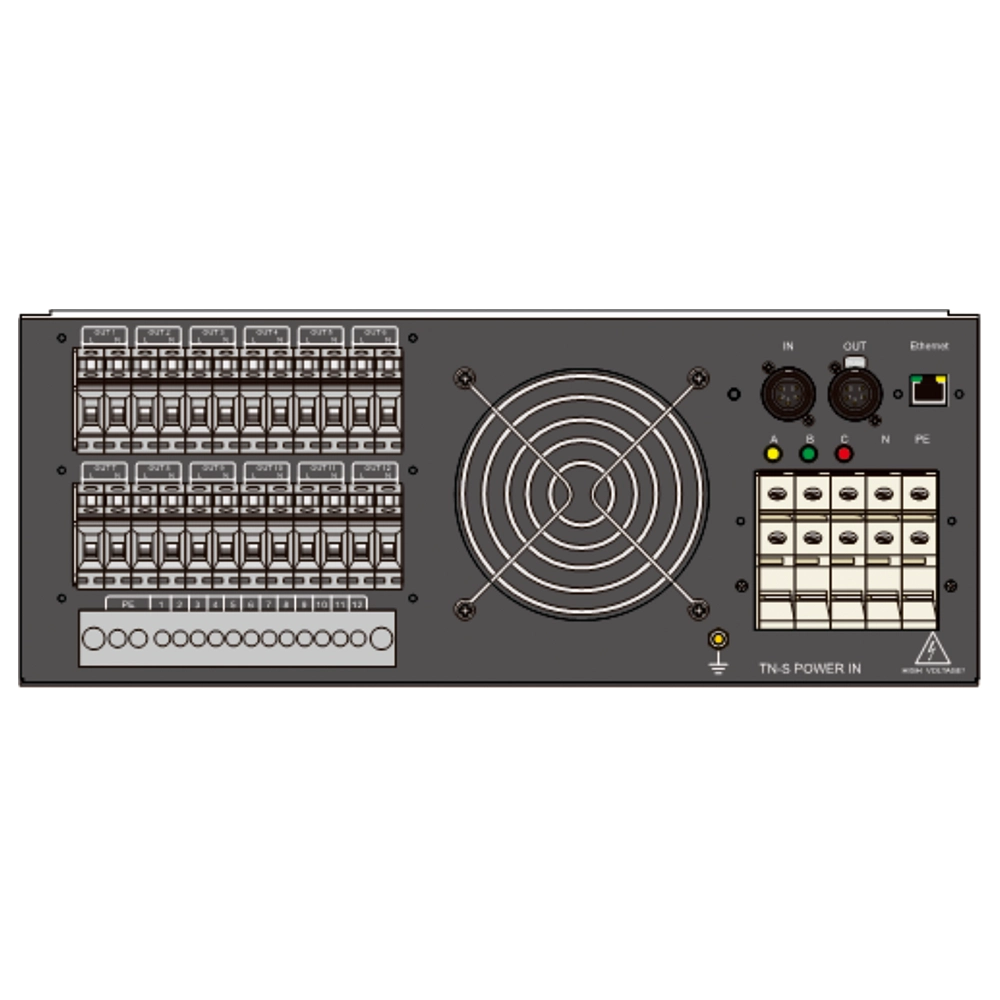

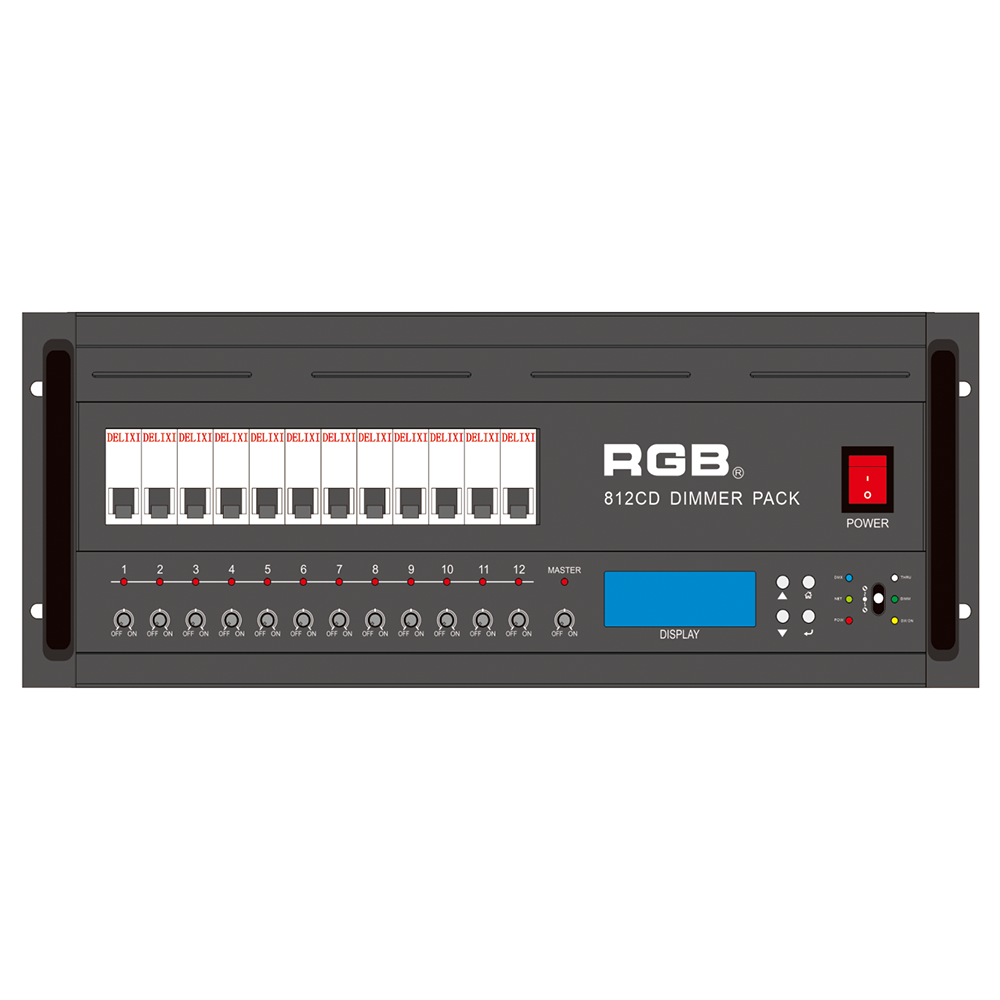

Series model：812CD
RGB is the latest development and production of all digital, intelligent, and network dimming through the hybrid silicon box. It comes with six channels (806 silicon box), twelve channels (812 silicon box) with analog knob dimming, 49 DMX field recordings and replays (field backup function), and self-programming and recording field. RGB-8 silicon box with DMX512 digital signal input and RJ45 network input interface, with various types of dimming stations at home and abroad used. It is a powerful, stable performance and reliable work of a new generation of intelligent digital dimming through a hybrid silicon box.
- Meet the international EN61000-2014, EN55032-2015, EN55035-2017, and other test standards and meet the national standard GB/T 13582-1992, GB/T 14218-2018, and other quality testing standards
- Pass CE certification and obtain a certificate; pass third-party testing and obtain a report.
- The panel has three working modes of switch selection: straight through and dimming
- There are three ways to set the working mode: dip switch, LCM screen and remote monitoring and visualization software
- Support network control, remote network setup and feedback reporting
- Adopt the latest digital intelligent technology, LCD LCD display, easy-to-operate keyboard and man-machine interface
- The use of high anti-interference, photoelectric isolation, high stability of the central control unit and trigger line, with strong anti-interference performance, can work normally and reliably under strong power interference and environmental interference, excellent stability
- Use LCD display and keyboard operation to set the address code (can be set by the silicon box number or the initial silicon path address)
- Using flash IC memory address code, dimming curve, scene backup and other data, as well as user operation habits and other information, memory data can be saved for 100 years without loss
- Using imported ST (Thomson) high-quality bidirectional thyristor chip and the newly designed package module, can resist direct short circuits to ensure the safety and reliability of silicon box
- With DMX-512 signal isolation amplifier, can avoid high voltage into the signal line and damage the dimming table
- High-efficiency choke inductance and excellent electromagnetic compatibility performance, to ensure no interference to audio or video
- Scene backup function: 49 DMX signal fields, or self-programming fields can be recorded, and the recording field can be repeated and deleted
- Built-in 10 dimming curves for users to choose to use; silicon box can be set to pass through (zero trigger)
- Silicon circuit detection and self-test function: single detection, preset 12 brightness, dynamic fade-in and fade-out light
- Large-capacity silicon circuit, the maximum address code up to 512 silicon road numbers
- Three-phase, dual-phase, and single-phase use, with phase loss protection function (the part that has not lost phase can still work normally), and can be used in emergency to incorporate the power-lacking phase into other phases
- New appearance design, improved power input mode, easy-to-flow performance
- Adopt optimal ventilation and heat dissipation design to ensure the high reliability of the silicon box
- Direct dimming function, with knob sub-control and total control, convenient for on-site emergency rescue of light
- Support DHCP dynamic host configuration protocol function (optional)
- Support TCP/IP, sACN, and Art-Net network protocols (optional)
- Network protocol intelligent identification: sACN or Art-Net network protocol automatic identification and automatic switching (optional)
- Large output power, each output power up to 220V~30A (806 type) a total of 6 loops, or 220V~20A (812 type) a total of 12 loops
7 Series Digital Field Dimmer Packs
7 series digital field dimmer packs are newly developed products of our company. With DMX512 digital control signal input, they are compatible with other domestic and overseas digital lighting consoles. There exist 7 output choices: A series (40A), B series (3X10A), C series (19 core), D series (3 pin 32A), E series (3 pin 30A Japanese standard) F series (dual 19-core), G series (grid junction)
10i Visual Dimmer/Relay Racks
10i is the world's leading visual artificial intelligence dimming rack, integrated with 5G technology, a full digital trigger, sine wave, thyristors, relays, mixed thyristors and relays mixed sine wave and relays output configurations, a unique gold-plated plug-in process, a high-performance protection level, an industrial-grade aluminum alloy profile and other new technologies and advanced process designs and manufacturing.
It is suitable for the lighting control needs of different places such as high-standard grand theaters, TV stations, gymnasium and environmental intelligent lighting.
9i intelligent network Dimmer/Relay Racks
9i is an artificial intelligence dimming racks independently developed by RGB, which has completely independent core technology and obtained software Copyrights, all digital electrodeless trigger and multi-backup independent CPU central processor technology. It has a variety of output configurations such as sine wave, thyR, relay and dimming relay mix, and supports visual lighting control system and visually displays the online and offline status of dimming racks. Realize remote monitoring, editing and setting of relevant parameters.
It is suitable for the lighting control needs of different places such as high standard grand theater, TV station, gymnasium and environmental intelligent lighting.
G30 Dimmer/Relay Racks
G30 Intelligent full character dimmer racks G30 is RGB independent research and development, with a completely independent core technology, full digital decoding technology dimmer racks; Dual system, dual decoder, dual trigger, duplex dual backup processor, with thyristor, relay, dimming relay mixed and other output configurations; Passed the first level machine standard and obtained a variety of certificates; Support artificial intelligence recognition function, support visual network system, intuitive display of dimming racks online and offline status, remote monitoring; Support RCD function, support dual LCD display, support the whole network TCP/IP, sACN, Art-Net network protocols;
It is widely used in performing arts and cultural venues such as theater, concert hall, multi-function hall, cultural travel and performing arts, TV station, gymnasium, auditorium, commercial art lighting and so on.
