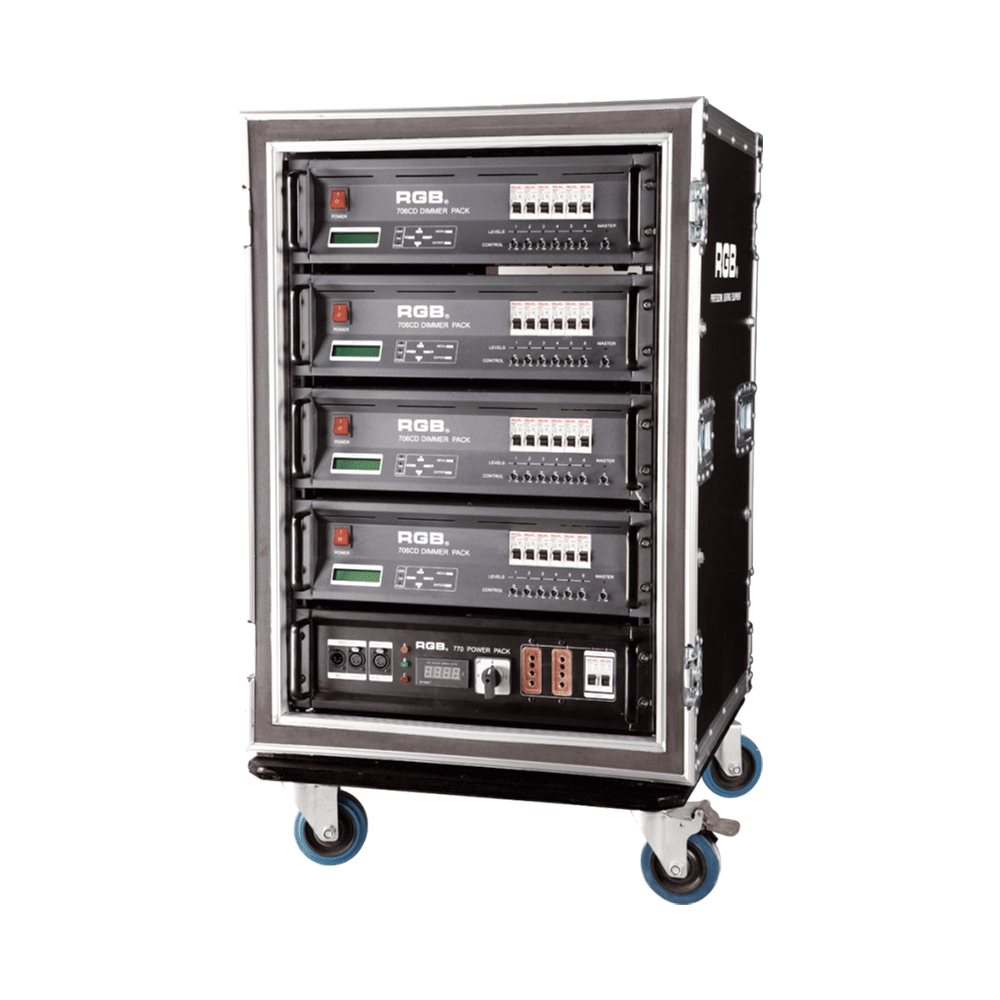

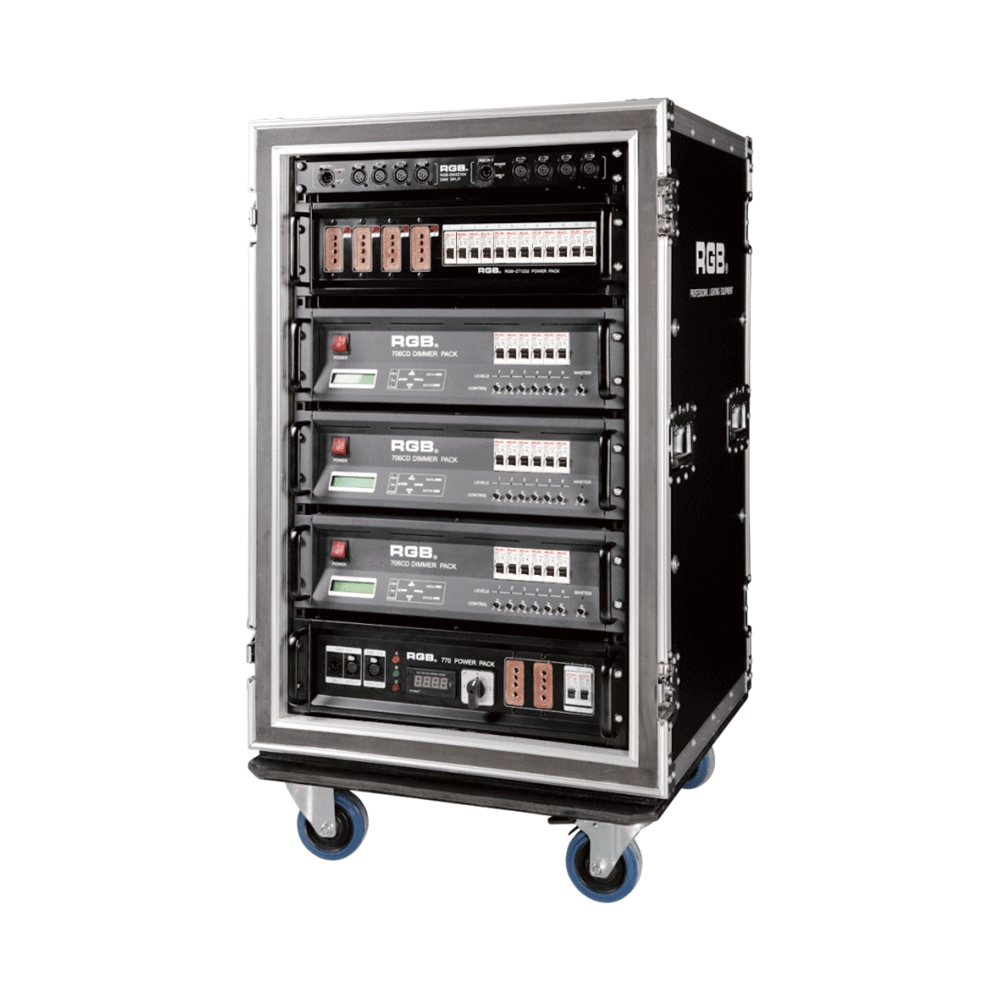

7 Series Digital Touring Dimmer Racks
Series model：7 Series
7 Series digital touring dimmer racks can be assembled into many types of dimmer by taking the 7 Series dimmer as the unit. They are widely used in the entertainment industry for their convenience and practicability.
- Intelligent jumper: dimmers can be configured to any DMX dimmer field.
- Lighting and beam-focusing: 6/12 channel digital lighting (the one whose proportion to the brightness value of the DMX signal is bigger takes precedence) sets the brightness value of any channel freely; centralized control turns on/off self-lighting freely.
- An A/B independent DMX signal input, which can be set to such modes as singleness (A/B), mix (the bigger one takes precedence), backup (A takes precedence and switches automatically), and so on.
- Field backup: records DMX signal field, auto-programs field, and deletes or runs the field.
- Lighting with program control: adjusts the brightness of every channel through a lighting knob of its own in a real-time way. While lighting, the speed can be adjusted through "↑" and "↓."
- System status reporting: observes the rack and dimmer temperature, network input voltage, dimmer output voltage and current through the algorithm;
- Observes lighting brightness (DMX signal value) by means of algorithm, hex, channel list and so on;
- Observes the status of the output circuit: OK/open/short.
- Over-temperature reporting and protection: reports emergencies when the rack temperature exceeds 80°C or the dimmer temperature exceeds 60°C (can change the set value);
- Protects itself automatically when the rack temperature exceeds 150℃ or the dimmer temperature exceeds 80℃ (can start/close the function); output overflowing (short) protection, which avoids dimmer burning to the largest degree.
- Lighting curve choosing: sets 12 kinds of lighting curves for customers to choose.
- Lighting range: 0~100%.
- Fan automatic switching: opens when the temperature exceeds 50℃ (can also close the function)
- Provides A, B, C, and D, four kinds of output sockets.
- Flight case with casters.
- Lead out and amplify the signal.
⦁ Multiplicate types：
RGB-7126(7 series 12 channel, 6KW)
RGB-7186(7 series 18 channel, 6KW)
RGB-7246(7 series 24 channel, 6KW)
RGB-7243(7 series 24 channel, 3KW)
RGB-7363(7 series 36 channel, 3KW)
RGB-7483(7 series 48 channel, 3KW)
⦁ Power supply: 3 phases 4 wires, biphase or monophase power supply, with groundwire, monophase at 220 Volt + 10%, 50Hz/60Hz
⦁ Control signal: DMX-512(1990)
⦁ SignalRated power: 6KW/channel or 3KW/channel
10i Visual Dimmer/Relay Racks
10i is the world's leading visual artificial intelligence dimming rack, integrated with 5G technology, a full digital trigger, sine wave, thyristors, relays, mixed thyristors and relays mixed sine wave and relays output configurations, a unique gold-plated plug-in process, a high-performance protection level, an industrial-grade aluminum alloy profile and other new technologies and advanced process designs and manufacturing.
It is suitable for the lighting control needs of different places such as high-standard grand theaters, TV stations, gymnasium and environmental intelligent lighting.
9i intelligent network Dimmer/Relay Racks
9i is an artificial intelligence dimming racks independently developed by RGB, which has completely independent core technology and obtained software Copyrights, all digital electrodeless trigger and multi-backup independent CPU central processor technology. It has a variety of output configurations such as sine wave, thyR, relay and dimming relay mix, and supports visual lighting control system and visually displays the online and offline status of dimming racks. Realize remote monitoring, editing and setting of relevant parameters.
It is suitable for the lighting control needs of different places such as high standard grand theater, TV station, gymnasium and environmental intelligent lighting.
CP6100 Light Control System
The lighting control host is the main control device for theater stage lights, work lights, environmental lighting, commercial art lighting, sports venue lighting, and other places. By connecting the dedicated lighting control panels CP6104 and CP6108, it realizes the central control of the lighting system, supports a visual lighting control system, and intuitively displays the online and offline status of CP6100. Realize remote monitoring, editing, and setting of corresponding parameters.
It is widely applicable to theaters, cinemas, auditoriums, stadiums, museums, exhibition halls, cultural tourism performances, commercial art lighting, and other places.
K2 Intelligent Network Relay Racks
K series is the newly developed and produced product of all-weather smart network relay cabinet. It has two major indoor and outdoor waterproof series and has multiple network control modes, such as double DMX512, sACN, ART-net, etc, which can control any equipment like resistive, inductive and capacitive and so on
K series has two major series from the perspective of function, namely, K2 ordinary type and KW2 waterproof type. It has two modes of installation, one is hanging on the wall, and the other is cabinet. It has three specifications of output circuit, namely, 24, 48 and 60 respectively.
K series applies to different performance places, such as, outdoor cultural tourism, TV station, theater, stadium and ambient intelligence lighting and so on.
