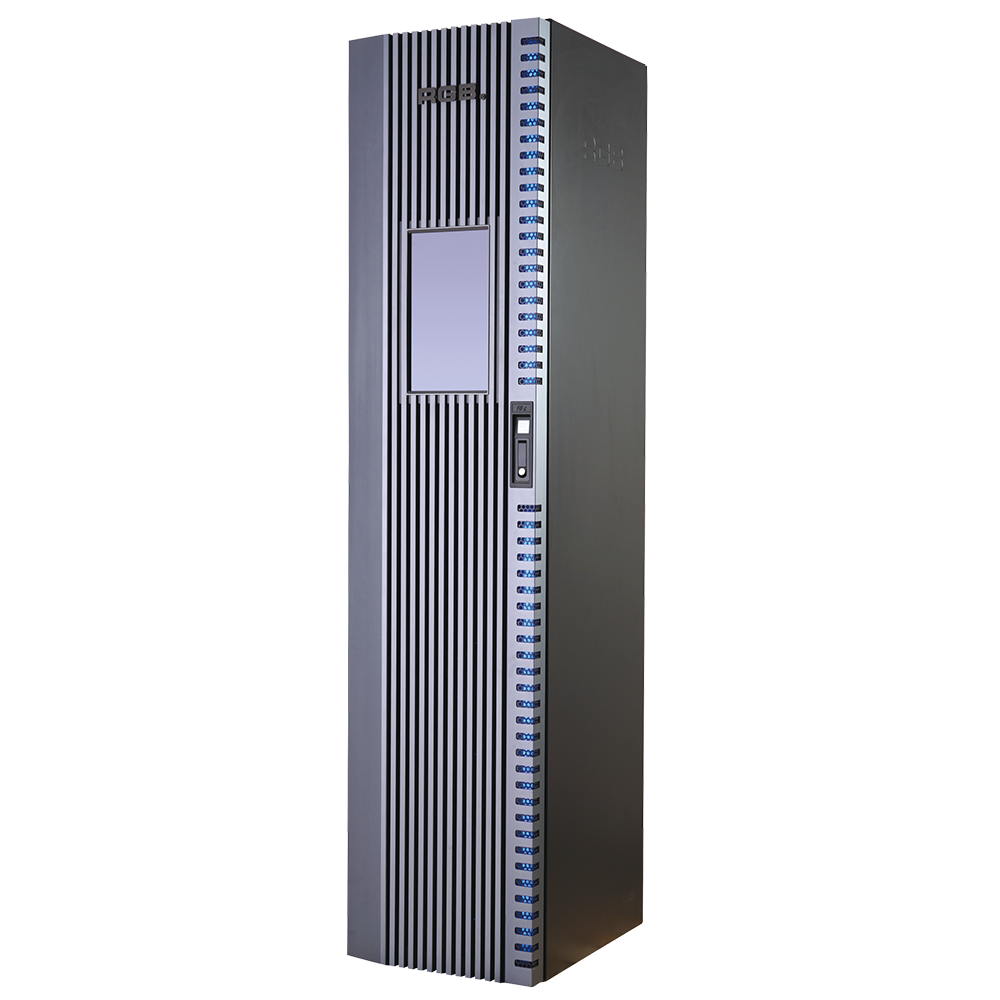

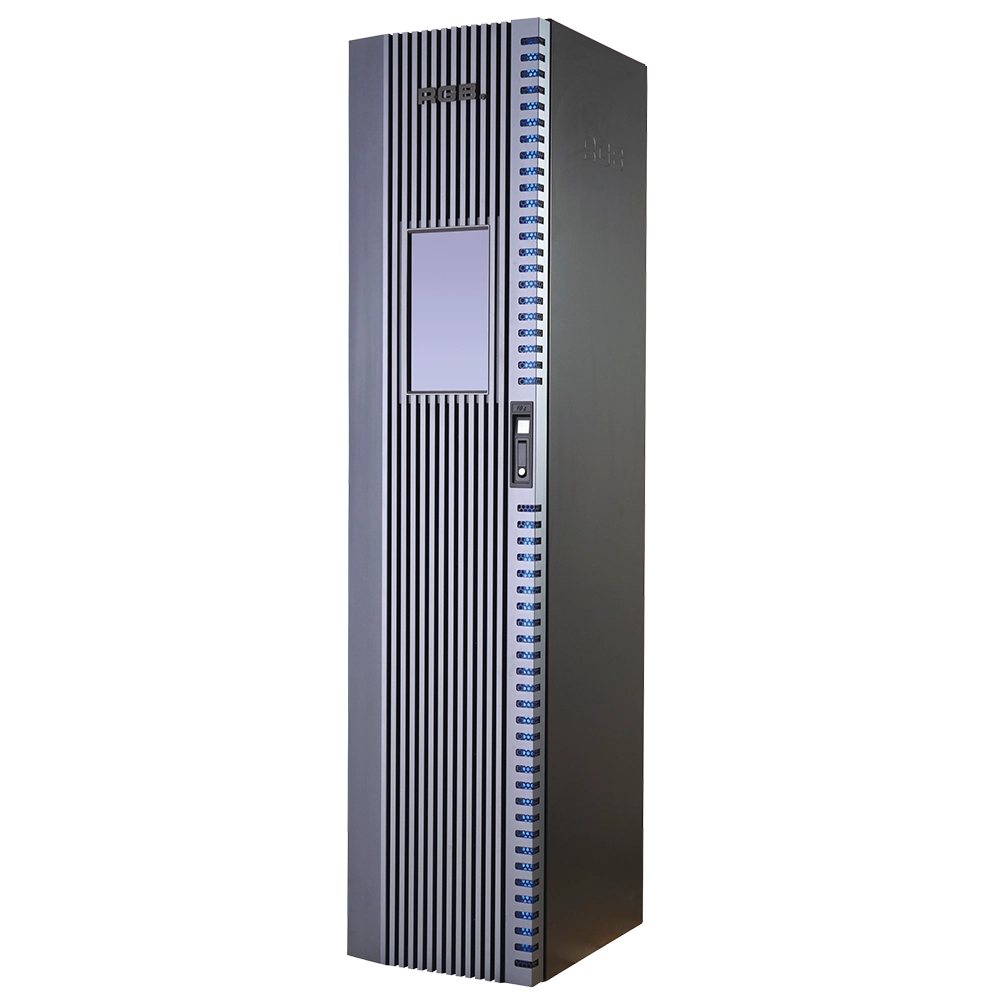

10i Visual Dimmer/Relay Racks

Main performance features:

• The racks meets the test standard of international standards such as EN61000-2014, EN5503.1-2009, EN5503.2-2009, and the quality inspection standards of national standards such as GB/T 13582-1992, GB/T14218-2018, and GB/T7251.12-2013.
• The racks has obtained CQC certification, CE or UL certification, and the inspection certificate issued by third parties and EMC.
• Visual monitoring system: Under the communication of sACN, Art-Net, RGG-NET, RDM, and other protocols, it realizes real-time equipment monitoring, visually displays the online/offline status of equipment, and shows the connection status between devices in three colors: blue, green, gray (optional).
• Multi-backup non-polar trigger control technology: each module has an independent CPU central processor, DMX full digital decoding, and independent dimming control function; non-interference ensures A, B, C three-phase load balance, automatically identifies loop address codes in natural digital order, enabling multi-system, multi-decoding, multi-backup, multiplex work.
• Intelligent recognition and automatic switching control function: the system can identify resistive, non-resistive, or no-load types and automatically switch to the corresponding mode (resistive load = dimming mode, non-resistive load = through mode).
• Efficiency compensation technology: relay instantaneous high voltage <350V, extending relay life by more than 10 times and lamp service life by 50%.
• Unrestricted dimming control technology: in multi-link systems, zero vacancy of address codes can be achieved (e.g., starting address of sixth 96-circuit dimming rack can be set to 481), and starting address codes can be set arbitrarily.
• Dual language system: supports Chinese and English display, which can be switched freely.
• Wired remote control: system monotone optical racks, multi-dimming racks step dimming/through control, single and multi-channel simultaneous DMX network signal sending/receiving, real-time capture of DMX network error codes, intuitive light column, brightness percentage, hexadecimal display mode.

Main performance characteristics:

• Double liquid crystal display: a color liquid crystal display is installed on the racks body to monitor the parameters of the dimming racks, and each drawer unit LCD displays the operation status.

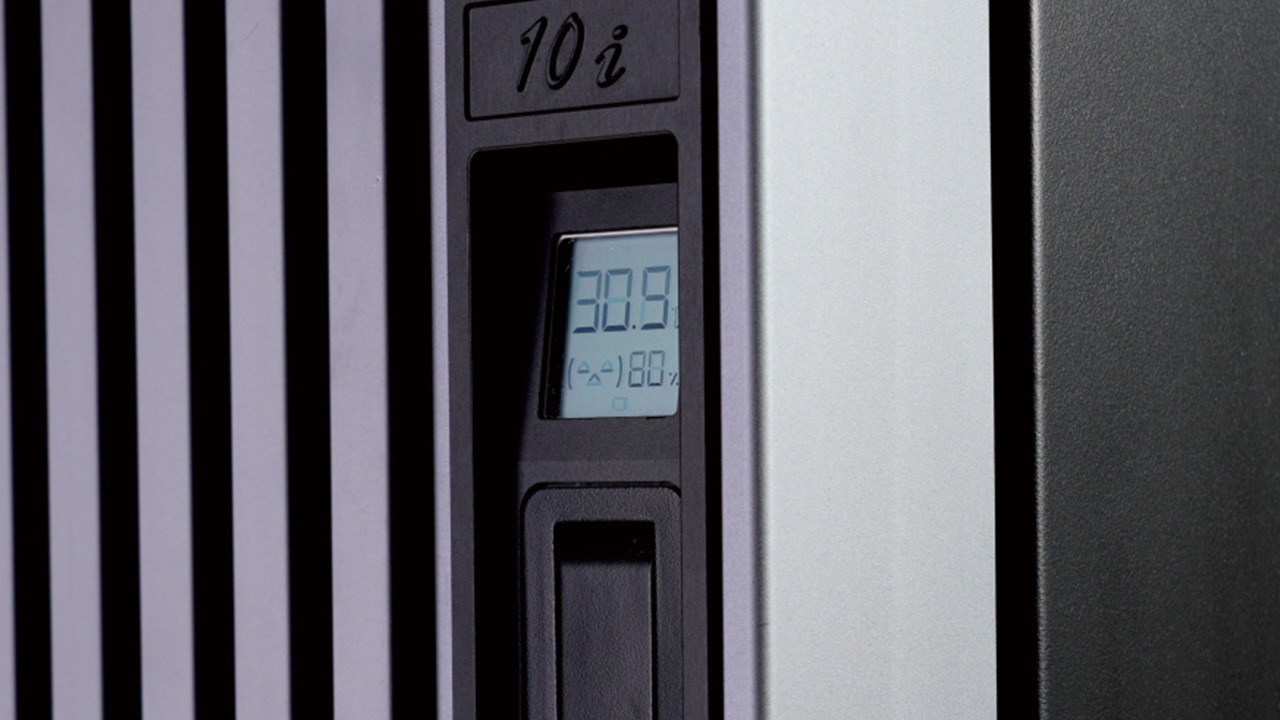

• Without power supply, it can independently monitor the real-time temperature and humidity of the working environment 24 hours a day.
• Racks display: Color touch LCD intelligent display and touch control is installed for real-time monitoring of the racks operation status and controlling/setting parameters such as DMX address, dimming curve, operation mode, network, initialization, online drawers, racks number and starting address, automatic identification and switching, heating value, and self-diagnosis.

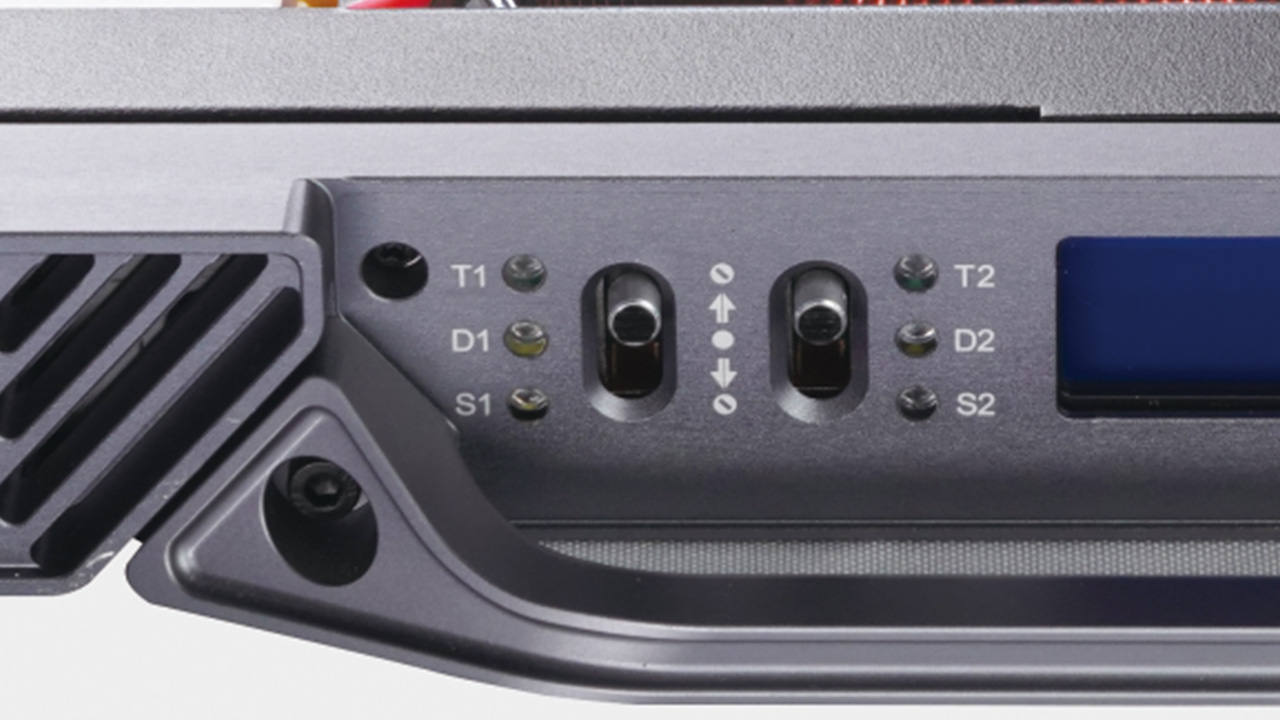

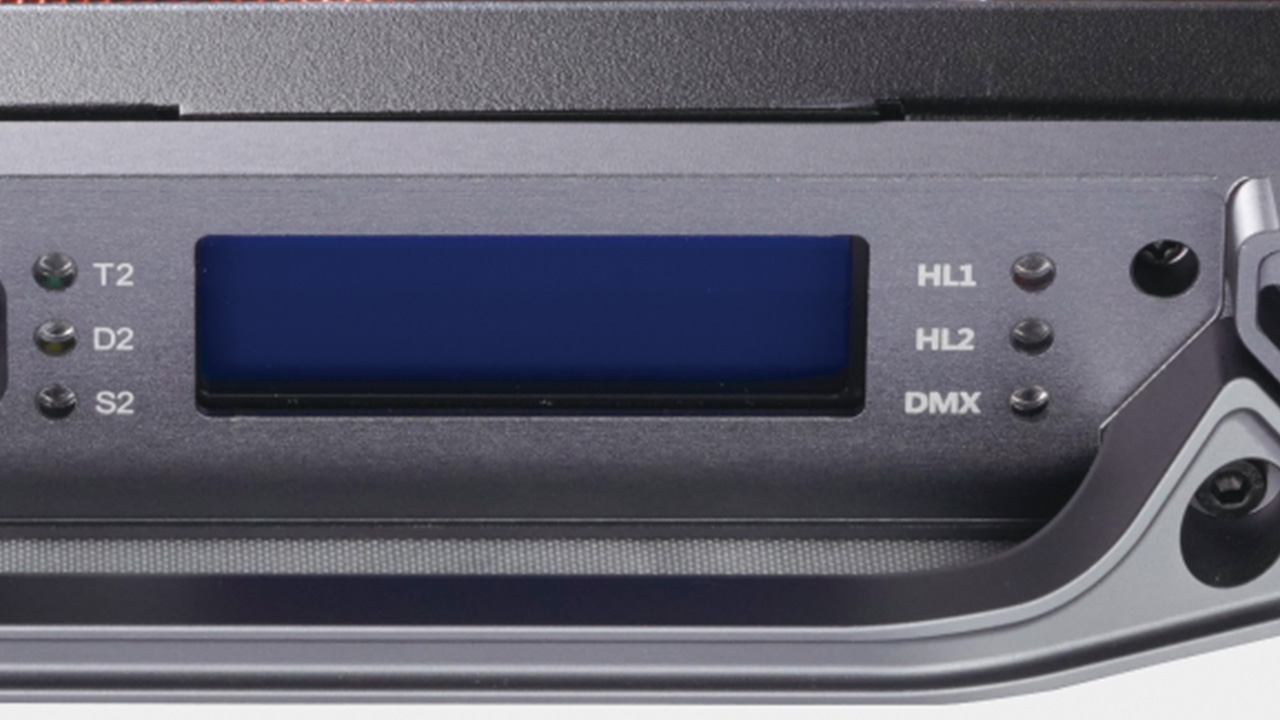

• Drawer display: each drawer is equipped with an LCD to display circuit address, load phase, brightness adjustment, operation mode, switch state, and other parameters; the racks has functions such as independent LED operation status indication, dimming/pass-through manual switching, and highest priority emergency switch mode.
• Remote feedback, remote PC display and setting functions: the racks operation status is remotely monitored and controlled, including racks initialization, restore factory default, operation mode, short circuit protection frequency, dimming setting, network protocol, preheating value, and other main parameters, which can be displayed and set remotely via PC.
• Dual DMX512, RDM, RJ45, optical fiber input mode, support full network sACN, Art-Net, RGB-Net network protocol.
• Support Android and iOS platform APP application pattern (optional).
• Mobile touch screen: With system mobile touch screen, support dimming racks parameter setting and control of the entire system dimming racks (optional).
• The racks has preset 21 dimming curves and ≥999 custom dimming curve settings.
• Wireless WIFI control: support wireless remote dimming function (optional).
• The racks has functions such as lamp identification commissioning, emergency dimming, “scene” edition, editing, backup scene record and playback. Scene number ≥999.
• High dimming accuracy: Level 4096.
• Emergency scene recording: when all control signals are interrupted suddenly, the system automatically holds the last scene.
• Intelligent fan function: 4 functions are available—low speed, medium speed, high speed, and intelligent; when selecting intelligent, the racks automatically switches according to the working temperature.
• Dual backup power system: indicates power status and alarm; standby power can start immediately in case of failure or main power failure.

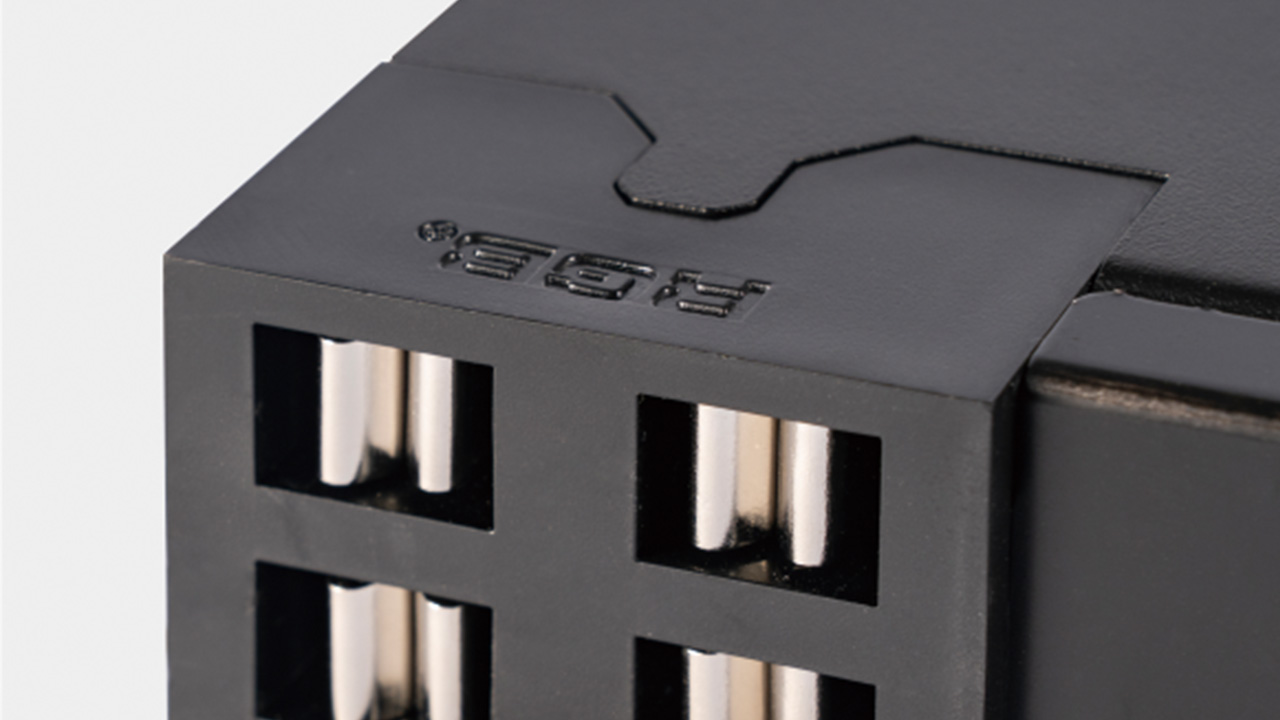

• Hotplug functions: supports normal removal and replacement of the drawer while in working state (plug and play).
• Alternative automatic voltage compensation function: when input voltage changes between 180-240V, output voltage remains constant to ensure consistent light brightness.
• Automatic testing function upon starting and loading: accurately tests load conditions such as open circuit, short circuit, and three-phase equilibrium.
• Lockable installation, commissioning, and maintenance back door ensures standardized wiring and easy fault removal.
• Dynamic preheating and recording function: saves energy, extends bulb service life, and detects the power consumption of each load (optional).
• High efficiency, energy-saving, and environmental protection technology: power factor ≥0.98, improves energy use efficiency, reduces load reactive power loss.
• Unique protective racks body structure: high-quality galvanized material for moisture-proof, anticorrosive, and dustproof performance, ensuring safety and reliability.

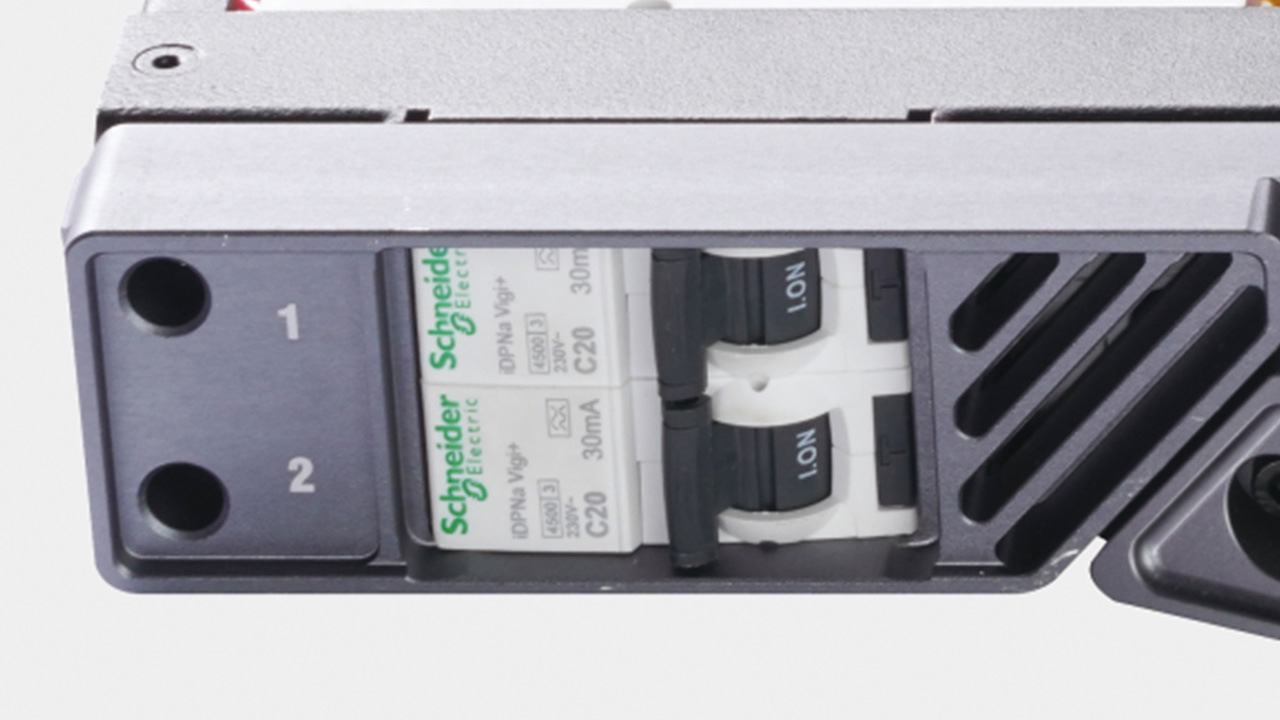

• Dimming self-protection function: high-strength SCR, direct short-circuit ≥100 times, preheating value setting, each loop with independent RCD protection device (optional).
• Support three independent output modes: sine wave, SCR, relay output.
• Four drawer units: sine wave, SCR, relay, SCR + relay; compatible with simultaneous operation of same dimmer racks without interference.
• ST high-quality bidirectional SCR, 2500V optocoupler, photoelectric isolation, and 15KV anti-static protection to avoid high voltage entering the control system.

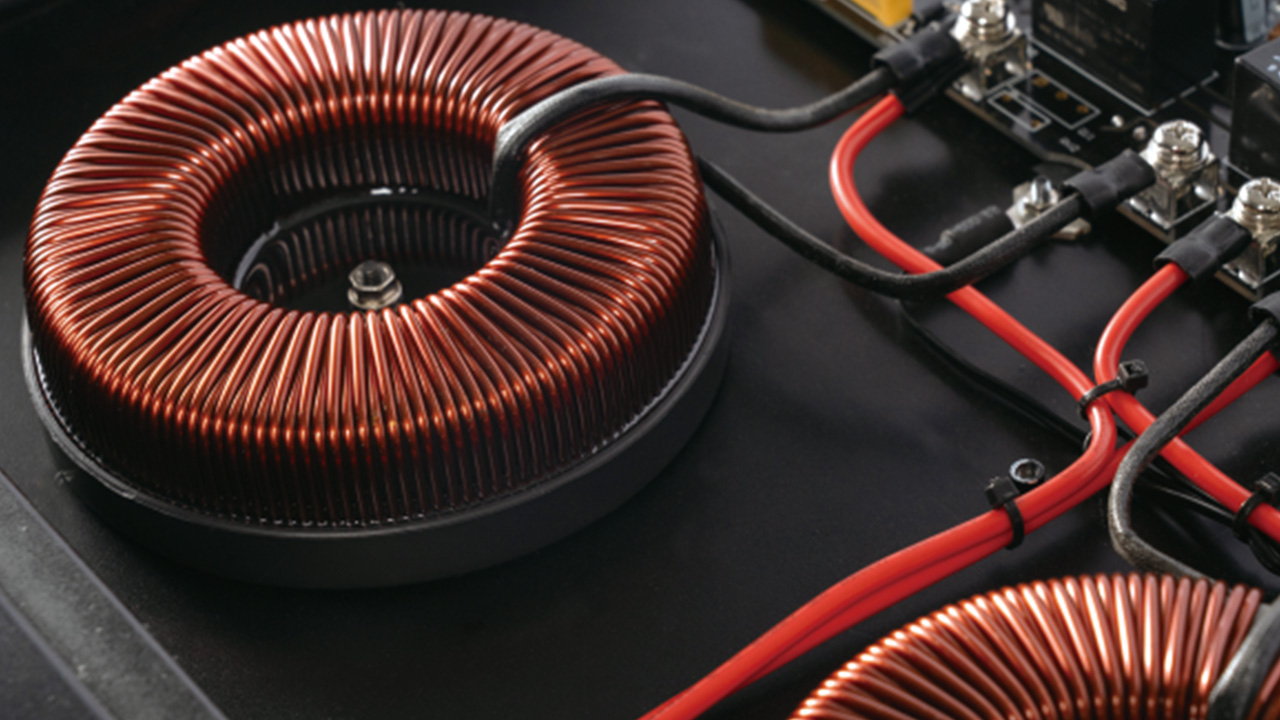

• Strong anti-interference ability: meets BS800 standards, choke inductance restrains current rise time ≥500μs.

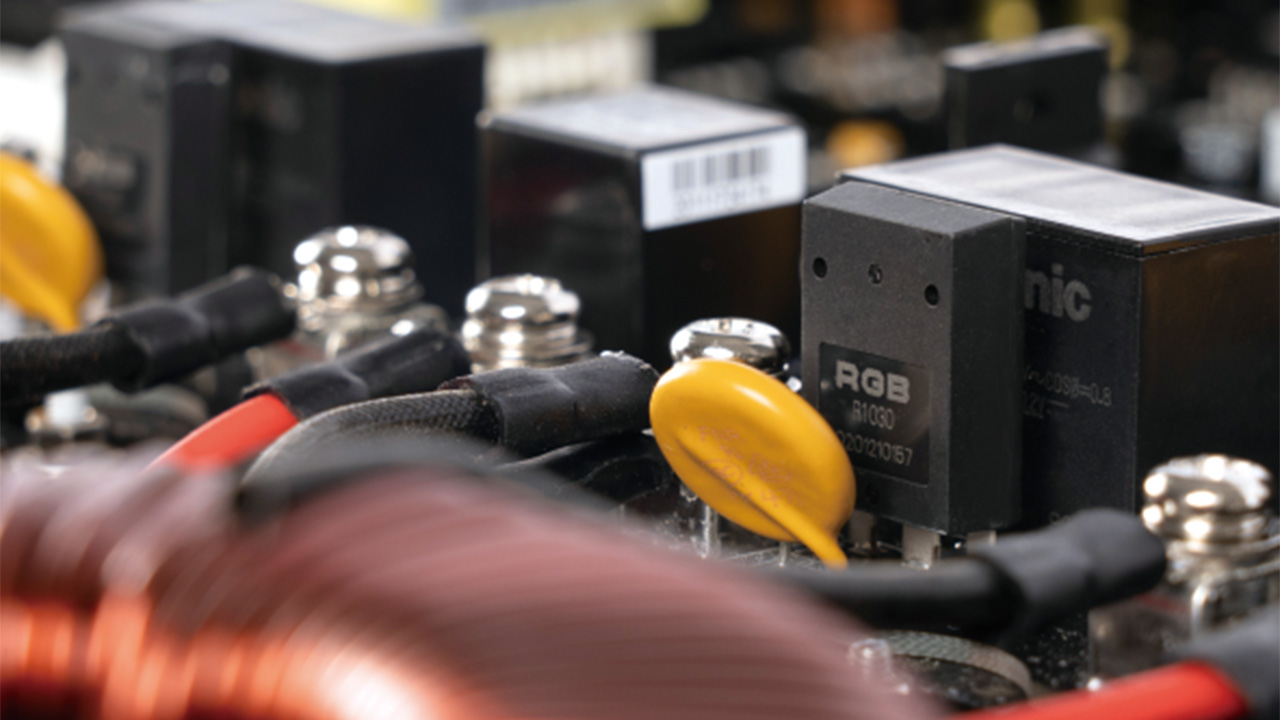

• High-quality industrial relay: DC direct trigger control, instantaneous pulse current resistance up to 150A.

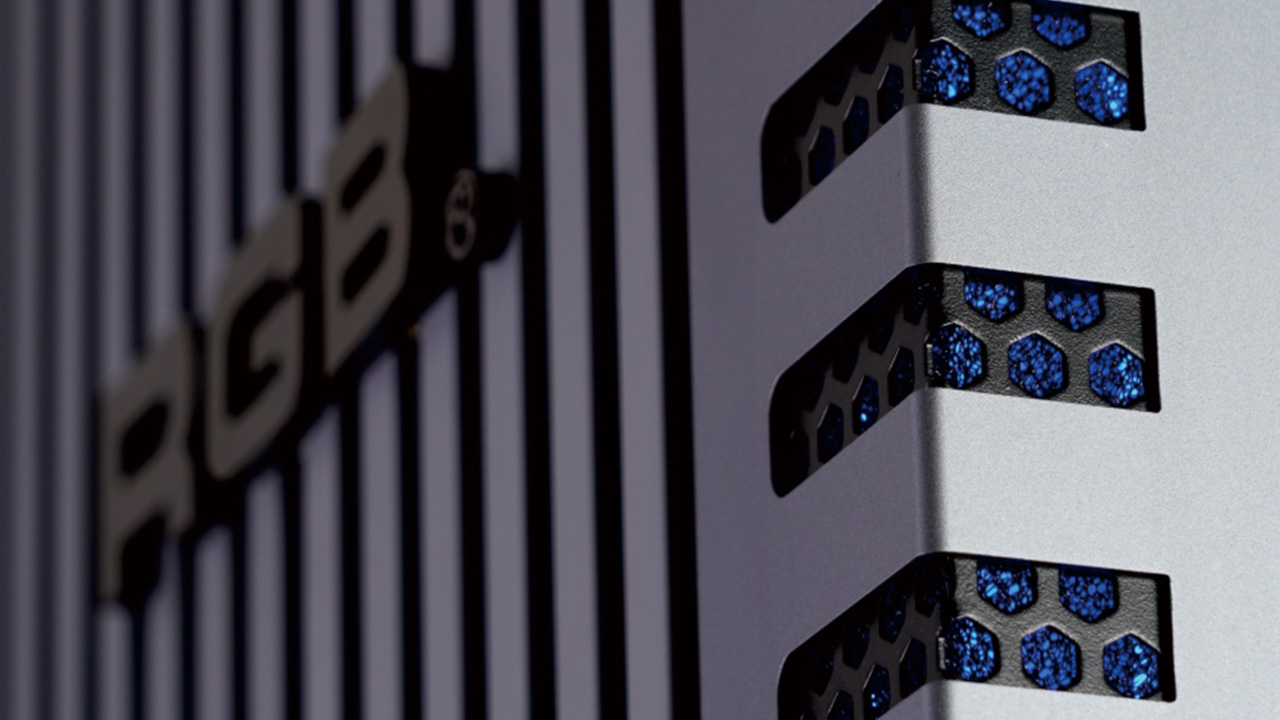

• Unique high-efficiency heat dissipation design: excellent wind path system, aluminum alloy drawer shell, excellent heat dissipation to improve service life.
• High dimming accuracy: Level 4096.
• Available in 60 circuits and 96 circuits modes.

• Power supply: Three-phase five little system, single phase 90-240VAC, 50Hz/60Hz
• Signal interface: 2 x DMX-512, RDM, RJ45, optical fiber, WIFI
• Sine wave fidelity: harmonic distortion < 0.3%
• Sine wave efficiency: working efficiency ≥98%; Power factor ≥0.98
• Sine wave dimming characteristics: achieve infinite level AC-AC (0-100%) complete sine wave amplitude modulation
• Rise time: 350-450μs
• Maximum load power of each circuit: 3KW, 4KW, 5KW, 6KW, etc.
