The Ultimate Guide to Touring Dimmer Racks [2026 Selection & Maintenance]

Welcome to the definitive guide on selecting and maintaining touring dimmer racks for 2026. As the live entertainment industry rapidly transitions from traditional incandescent fixtures to highly intelligent LED rigs, the demands placed on stage lighting power distribution have evolved dramatically. This comprehensive article covers everything from core definitions and emerging industry standards to critical maintenance protocols, ensuring your production stays powered, safe, and flawless on the road.

What is a Touring Dimmer Rack?

A touring dimmer rack is a rugged, portable power distribution and control system used in live entertainment to regulate voltage to stage lighting fixtures. Housed in heavy-duty flight cases, they integrate DMX512 control, high-capacity dimming modules, and main breaker protection.

To understand how these systems function, it is important to look at their core protocols. As reported by Wikipedia's DMX512 overview, DMX512 is the standard digital communication network used globally to control lighting and effects. Within these portable lighting dimmer racks, the control signal communicates with individual modules, telling them exactly how much voltage to output.

• Centralized Control: They provide lighting designers with the ability to safely and seamlessly control hundreds of power channels from a single lighting console.
• Rugged Portability: Built specifically for the rigors of the road, the internal components are shock-mounted to prevent damage during transport between venues.
• All-in-One Distribution: Modern racks do not just dim; they act as the primary stage lighting power distribution hub, taking a massive 3-phase venue feed and breaking it down into usable, protected circuits for the lighting rig.

Key Takeaways: 2026 Touring Dimmer Quick Summary

The 2026 touring dimmer landscape prioritizes hybrid module versatility, advanced networking, and ruggedized durability. Standard configurations range from 12 to 96 channels, supporting traditional incandescent dimming alongside constant power relay modules required for modern intelligent LED stage lighting rigs.

When evaluating DMX512 dimming systems for upcoming tours, professionals must prioritize the following key elements:

• Channel Count & Amperage: Standard professional configurations typically range from 12 to 96 channels. Depending on the fixture load, these channels usually operate at 10A, 16A, or 20A per circuit.
• Module Versatility: A modern rack must be a hybrid. It must support both traditional silicon-controlled rectifier (SCR) dimming for legacy incandescents and constant power (relay) capabilities for intelligent LED fixtures.
• Networking Capabilities: Standard DMX is no longer enough. Advanced racks now prioritize ethernet-based protocols like sACN, Art-Net, and MA-Net, allowing for massive universe counts and bi-directional communication.
• Durability: Ruggedized NEMA enclosures, internal shock-mounted frames, and high-efficiency ventilation systems are non-negotiable features for surviving extreme touring environments.

Top Manufacturers and Industry Standards

The top manufacturers setting industry standards for touring dimmers include ETC, Avolites, Strand Lighting, and Lex Products. These legacy brands provide the backbone of modern stage lighting power distribution by offering robust, high-density systems proven to survive extreme road conditions.

In the high-stakes world of live event production, relying on proven manufacturers is critical for ensuring zero downtime:

• ETC (Electronic Theatre Controls): As detailed by ETC's Sensor3 Touring documentation, the ETC Sensor3 touring rack remains the gold standard in the industry. It is universally recognized for its incredibly reliable CEM3 control card and high-density dimmer modules, making it a staple on global stadium tours.
• Avolites: The Avolites ART2000 Plus is highly regarded by lighting technicians for its innovative approach to integration. It seamlessly combines traditional dimming, moving light power distribution, and data routing into one cohesive, easy-to-manage unit.
• Strand Lighting & Lex Products: Known for their legendary reliability, these companies produce rugged PowerRACK systems designed for rapid setup, maximum safety, and abuse-resistant operations in harsh outdoor festival environments.

Crucial Features to Look for in 2026

Crucial features for 2026 touring racks include ThruPower and relay modules, advanced control cards with real-time monitoring, integrated power patching, and comprehensive overcurrent protection. These capabilities ensure compatibility with intelligent LED rigs and guarantee compliance with global touring safety standards.

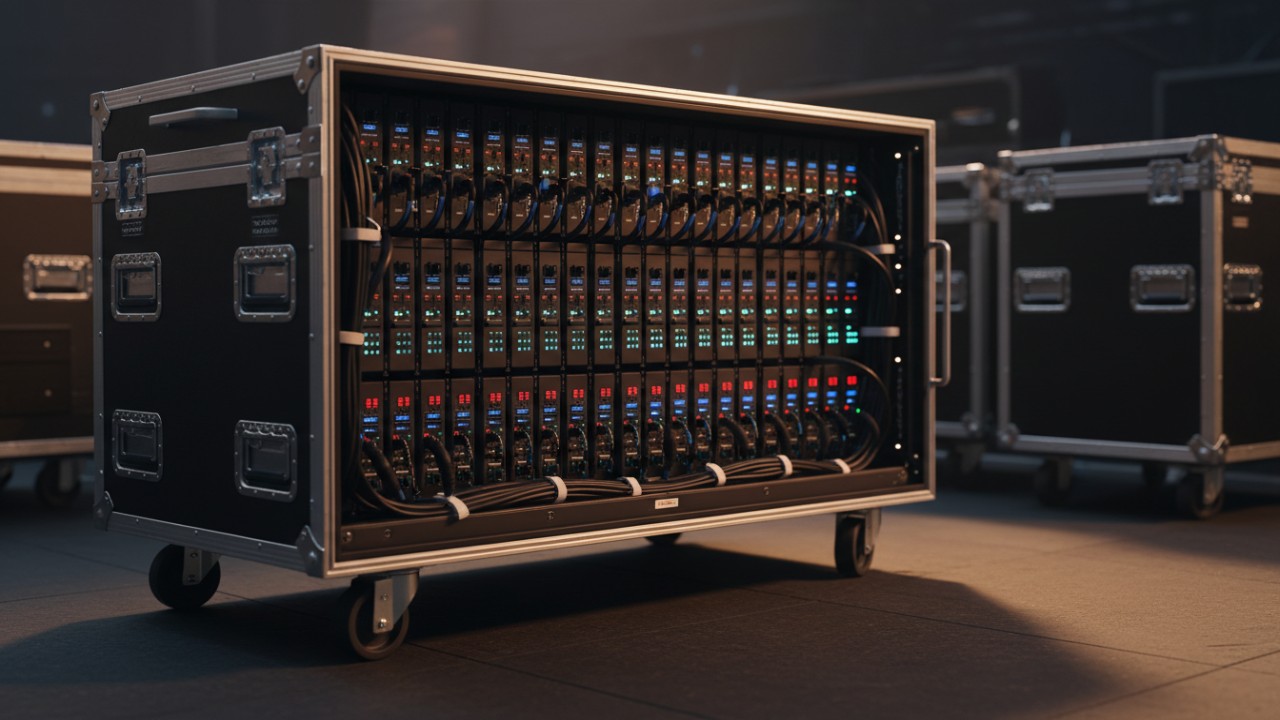

When upgrading your inventory, ensure your new high-density dimmer modules and racks include the following advancements:

• ThruPower and Relay Modules: These are absolutely essential for modern rigs. Intelligent moving lights and LED fixtures require constant, un-dimmed power. ThruPower modules allow technicians to switch a circuit from a dimmed output to a pure relay output with the push of a button.
• Advanced Control Cards: Look for systems that offer deep telemetry. Real-time voltage, current, and temperature monitoring at the individual module level allows technicians to identify faults before a breaker trips.
• Integrated Power Patching: Internal, multi-cable output patching using standard Socapex connectors is a massive time-saver, shaving hours off of grueling load-in and load-out schedules.
• Overcurrent Protection: Look for advanced main breaker protection and RCD/GFCI compliance. With global touring safety standards tightening, protecting personnel from ground faults is a primary legal and ethical requirement.

Gap Analysis: New vs. Used Racks & Pricing Expectations

Deciding between new and used dimmer racks involves weighing upfront costs against warranty protection and modern protocol support. Buying new guarantees maximum lifespan and advanced features, while used racks offer significant discounts but demand rigorous inspection of internal components.

Production managers must carefully analyze their Return on Investment (ROI) when sourcing power infrastructure:

• Buying New: Purchasing a brand-new ETC Sensor3 touring rack or similar system offers full manufacturer warranties, the absolute latest in network control protocols, and maximum component lifespan. Buyers should expect premium pricing, starting around $10,000 to $15,000 for high-end, fully loaded 48-way racks.
• Buying Used: The used market is highly cost-effective, often providing 40-60% off MSRP via broker networks like UsedLighting or Solaris. However, buyers must perform thorough inspections of the control cards, backplanes, and cooling fan units to ensure the rack has not been thermally abused.
• The Rental Route: For short or regional tours, renting is often the most financially viable option. Production companies like PRG and Christie Lites offer fully serviced, road-ready racks, shifting the heavy burden of maintenance liability entirely away from the production.

Expert Tips: Common Mistakes When Patching and Powering Up

The most common mistakes when operating touring dimmer racks include accidentally dimming intelligent fixtures, failing to balance phase loads, and obstructing rear ventilation fans. Avoiding these errors prevents catastrophic equipment damage, thermal shutdowns, and hazardous power failures during live performances.

Even seasoned electricians can make critical errors during a chaotic load-in. Always keep these expert tips in mind:

• Mistake 1: Dimming Intelligent Fixtures: As noted in Wikipedia's guide to LED stage lighting, LEDs do not require traditional dimmers. Modern LED instruments contain complex internal electronics. Accidentally sending "chopped" or dimmed power from a standard SCR module to an LED or moving light can instantly destroy its internal power supply. Always ensure you are using relay or bypass modules for these fixtures.
• Mistake 2: Improper Phase Balancing: A touring rack draws massive amounts of power. Failing to balance the electrical load evenly across your 3-phase power supply can lead to overloaded neutral lines, tripped venue main breakers, and dangerous "dropped neutral" voltage spikes that can fry 120V equipment.
• Mistake 3: Ignoring Ventilation: Portable lighting dimmer racks generate massive amounts of ambient heat. Pushing a road case directly against a venue wall and blocking the rear exhaust fans will cause the internal sensors to trigger a rapid, show-stopping thermal shutdown.

Maintenance and Troubleshooting for Road-Ready Dimming

Maintaining a touring dimmer rack requires routine dust removal, meticulous inspection of multi-pin connectors, and verifying module seating before every load-in. Consistent preventative maintenance prevents thermal throttling, dangerous arcing, and loose connections caused by heavy road vibrations.

To ensure your gear survives a 50-city tour, implement the following strict maintenance protocols:

• Routine Cleaning: Dust and theatrical haze fluid are the absolute enemies of dimmers and electronics. Regularly blow out the high-density dimmer modules, control card slots, and fan filters with dry compressed air to prevent overheating and thermal throttling.
• Connector Inspection: Before every single load-in, physically inspect the Socapex and Cam-Lok connectors. Look for signs of carbon buildup, melted plastic, arcing signs, or loose pins. A bad connector can cause a localized fire or drop power to an entire truss.
• Module Seating: Thousands of miles of road vibration inside a semi-truck can slowly back dimmer modules out of their slots. Always ensure all modules are firmly seated and locked into the backplane before engaging the main breaker.

Future Trends: Preparing Your Racks for 2026 and Beyond

The future of touring power systems shifts away from traditional silicon-controlled rectifier dimming toward intelligent power distribution networks. By 2026 and beyond, standard rigs will rely entirely on remotely switched relay modules, comprehensive network data, and advanced RDM integration.

The days of massive, heavy racks filled solely with incandescent dimmers are rapidly coming to an end. To future-proof your inventory, be aware of these impending shifts:

• The LED Takeover: As theatrical and concert productions move toward 100% LED and automated moving light rigs, traditional SCR dimmers are being steadily phased out of major inventories.
• Relay Distribution: The future standard involves intelligent power distribution racks comprised entirely of remotely switched relay modules. These racks focus purely on safely delivering clean, constant power and comprehensive network data distribution to the fixtures.
• Advanced Diagnostics: Expect advanced RDM (Remote Device Management) integration to become a mandatory standard. This will allow lighting technicians to diagnose specific fixture power faults, check temperatures, and remotely re-address units directly from the lighting console, without ever leaving the front of house.

Industry Leading Solutions: Guangzhou RGB Lighting Equipment Co.,Ltd. Touring Systems

Founded in 1996, Guangzhou RGB Lighting Equipment Co.,Ltd. engineers professional stage lighting control systems, including intelligent, high-performance touring dimmer and power distribution racks. Our hybrid dimmer solutions ensure long-term stability and precision performance for theaters, studios, and large-scale venues worldwide.

As a National High-Tech and Specialized Innovative Enterprise headquartered in Guangzhou, we leverage decades of R&D and strict ISO9001 quality control to build systems that professionals trust. From the Beijing Olympics to the Shanghai World Expo, our gear powers history.

• Custom Engineering: At RGB, we engineer custom touring dimmer and power distribution racks tailored to the exact specifications of your lighting rig. Whether you need a simple upgrade to a dmx intelligent lighting controller or a completely custom 96-way Socapex distro, we deliver.
• Road-Tested Durability: Our flight cases feature integrated shock-mounting, whisper-quiet thermal management, and seamless ThruPower integration to handle hybrid lighting setups.
• Certified Reliability: Certified to CE, RoHS, EMC, and CQC standards, our solutions guarantee zero downtime on stage, providing both traditional dimming and modern relay switching in one unified, intelligent platform.

Conclusion

Selecting the right touring dimmer rack is critical for the safety, efficiency, and reliability of your live production's lighting system. By prioritizing modern relay capabilities, robust networking protocols, and strict maintenance routines, your gear will withstand the harshest touring conditions.

Whether you are investing in brand new DMX512 dimming systems, evaluating the benefits of a used ETC Sensor3 touring rack, or transitioning completely to LED power distribution, understanding these core technical requirements ensures your show always goes on. Upgrading to intelligent, high-density systems not only protects your expensive lighting fixtures but dramatically streamlines your workflow on the road. Contact us today to optimize your stage lighting power distribution strategy.

How many channels does a standard touring dimmer rack have?

Standard professional touring dimmer racks typically feature 24, 48, or 96 channels. The exact channel count depends on the size of the production and the power requirements of the specific lighting rig.

What is the difference between a dimmer module and a relay module?

A dimmer module alters the voltage sent to a fixture to increase or decrease brightness, used mainly for incandescent bulbs. A relay module provides simple on/off constant power without altering voltage, which is required for LEDs and intelligent moving lights.

Can I run LED lighting fixtures on a traditional dimmer rack?

Running LED fixtures on traditional dimmed circuits can severely damage their internal power supplies. You must swap the dimmer module for a relay or ThruPower module to provide clean, constant power to LED fixtures.

What is a CEM3 control card and why is it important?

The CEM3 (Control Electronics Module) is the highly advanced brain of ETC's Sensor3 dimmer racks. It handles network inputs like sACN and DMX, monitors phase voltages, and allows configuration of individual modules as dimmers or relays.

How do you properly clean and maintain a touring dimmer rack?

Maintenance involves regularly cleaning fan filters, using compressed air to remove dust from internal components, and checking multi-pin connectors for arcing. Modules should be reseated periodically to counteract the vibrations experienced during transit.

What type of power connection does a 48-way touring rack require?

A large 48-way rack typically requires a 3-phase high-amperage power supply. It connects to the venue's main power service using heavy-duty Cam-Lok feeder cables.

How much does a professional touring dimmer rack weigh?

A fully loaded 48-way touring rack housed in a heavy-duty flight case can weigh between 300 and 500 pounds (136-226 kg). Because of this weight, they are equipped with heavy-duty casters and require proper ramp or lift-gate handling.

Are ETC Sensor3 dimmer racks compatible with sACN and Art-Net?

Yes, modern ETC Sensor3 racks equipped with the CEM3 control card support advanced networking protocols. This includes full compatibility with sACN and Art-Net, allowing for seamless integration into modern ethernet-based lighting networks.
