CP6100 Light Control System
Series model：CP6100
The lighting control host is the main control device for theater stage lights, work lights, environmental lighting, commercial art lighting, sports venue lighting, and other places. By connecting the dedicated lighting control panels CP6104 and CP6108, it realizes the central control of the lighting system, supports a visual lighting control system, and intuitively displays the online and offline status of CP6100. Realize remote monitoring, editing, and setting of corresponding parameters.
It is widely applicable to theaters, cinemas, auditoriums, stadiums, museums, exhibition halls, cultural tourism performances, commercial art lighting, and other places.
- It complies with international testing standards such as EN61000-2014, EN55032-2015, and EN55035-2017, as well as national quality inspection standards such as GB/T 13582-1992 and GB/T 14218-2018.
- Pass CE or UL certification and obtain the certificate; pass third-party testing and obtain the report
- Supports POE power supply, self-diagnosis, group control editing, scene recording, scene replay, remote monitoring, and dynamic connection. The scene replay time, duration and replay sequence can be set arbitrarily
- Online self-diagnosis: Real-time monitoring of working voltage, MCU, RS485 communication, DMX512, and online lighting control panel
- DMX input/output control enables real-time and true-to-life signal conversion between the standard DMX-512 and sACN and Art-Net protocols
- 1 RJ45 input interface, 1 optical fiber input interface, 8 POE function RJ45 output interfaces, supporting 8*10 lighting control panels
- Control panel expansion function: By expanding the auxiliary unit, it can be expanded to 1024 lighting control panels
- 2048 control optical paths, freely set within 8192 areas
- Support DHCP dynamic IP settings
- System lock function: Supports control host and control panel security lock functions
- Support unlimited custom scene numbers
- Color touch screen display, supporting parameter settings such as working mode, response speed, fade-in time, and fade-out time
- 15 commonly used dimming curves, such as linear, zero-crossing, square, square root, exponential, logarithmic, etc., and custom curves are also supported
- Support real-time control of the dimming console and the lighting control panel
- Supports zoned and grouped control, and has clock and network monitoring functions
- Series design: rack-mounted and wall-mounted types
- Visual lighting control system: Intuitively display the online and offline status of CP6100, CP6104, and CP6108; support remote monitoring, editing, and setting of corresponding parameters; and achieve remote lighting system control (optional)
- Support for lighting control panels: CP6104, CP6108
- Power supply: 90-265VAC, 50Hz/60Hz
- Signal interfaces: 2 DMX-512 interfaces, 1 RJ45 network input port, 1 optical fiber input interface (optional), 8 RJ45 network output ports
- Communication protocols: TCP/IP, sACN, Art-Net, DMX-512 protocol
Overall Dimension(mm):
| Product Model | Depth | Width | Height |
|---|---|---|---|

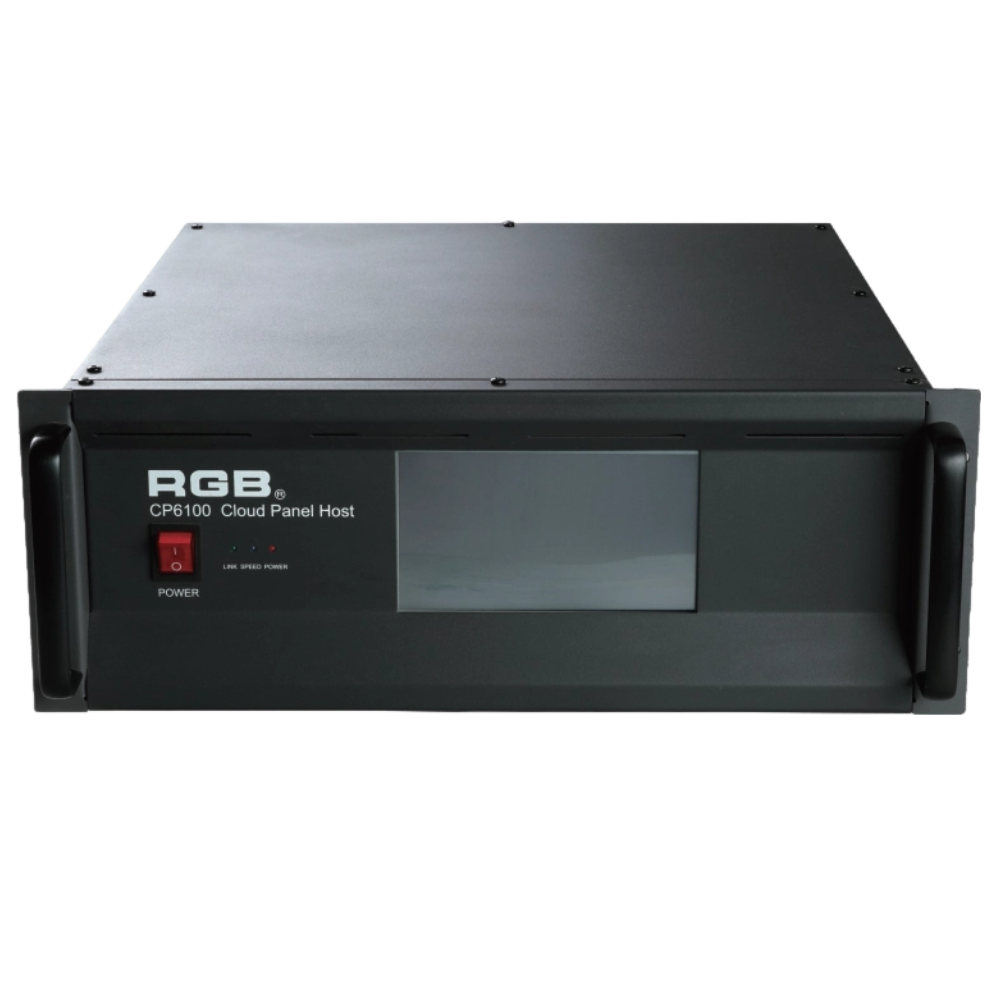

| Rack-mounted | 530 | 480 | 185 |

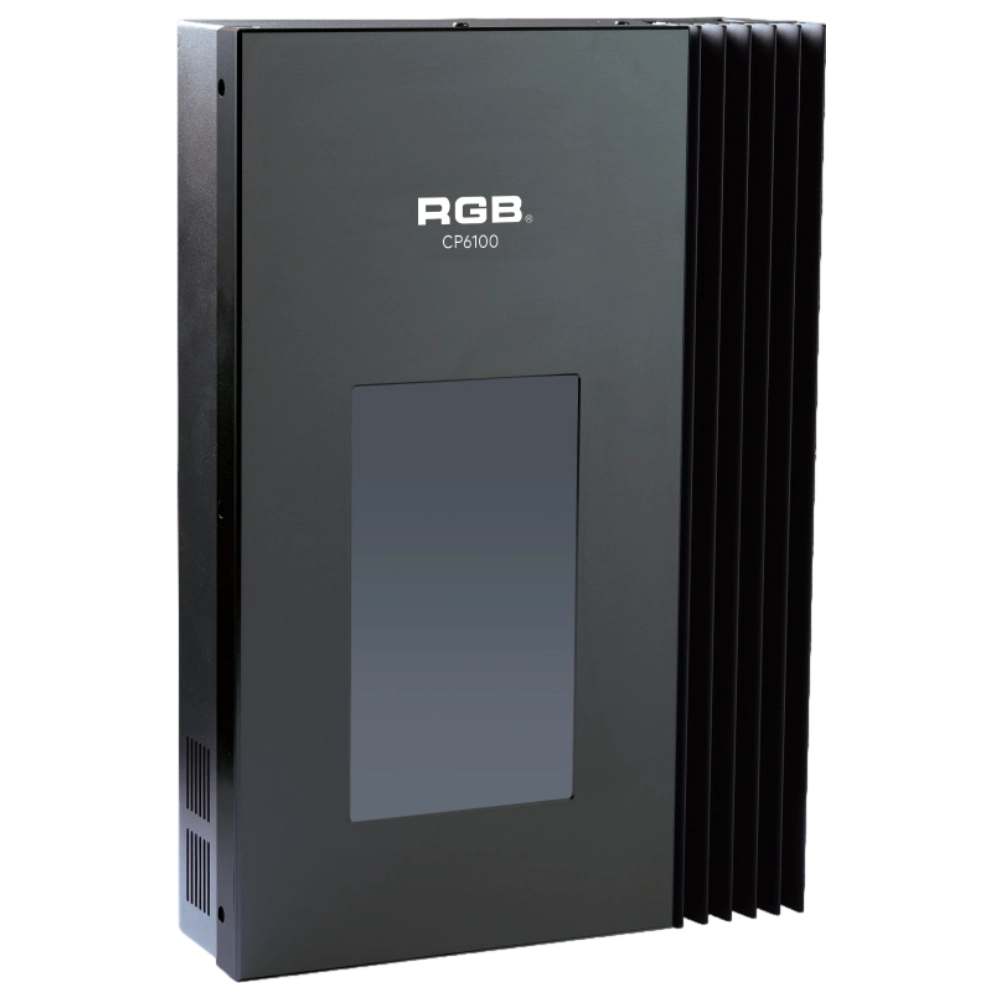

| Wall-mounted | 134 | 460 | 706 |
