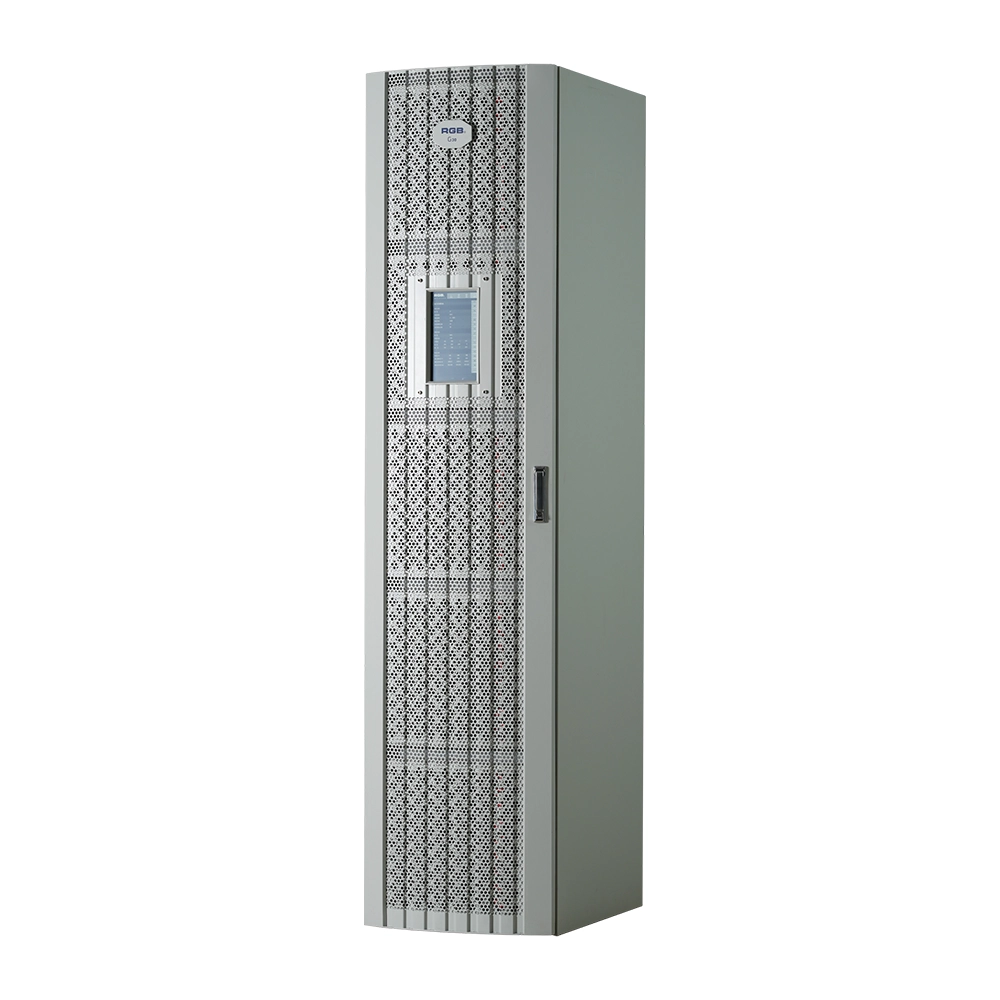

G30 Digital Dimmer & Relay Rack

Series model:G30

RGB G30 is a digital stage lighting dimmer and relay rack with dual decoding, triggering and backup architecture. It supports configurable SCR dimming and relay switching modules, Art-Net/sACN network monitoring and local cabinet status display. The published range includes 60- and 96-circuit cabinets; confirm selected power modules, protection devices and network options for each venue installation.

Digital Dimming & Relay Control
Control Interfaces & Installation
Technical Specifications
Dimensions & Weight
Accessories

The G30 provides digital DMX-based control of configurable dimming and relay output modules. The published product specification describes dual decoding and backup control architecture, status displays on the cabinet and modules, remote device monitoring and optional RCD-related protection arrangements. Choose SCR, relay or mixed output modules based on the connected lighting loads and project electrical design.

Art-Net and sACN network connectivity, addressing, scene recall and remote configuration are described in the source material. Capabilities vary by selected controller, modules and optional accessories. Hot swapping under load, short-circuit endurance and fixed efficiency improvements must be confirmed using an approved technical datasheet and safe maintenance procedure.

Control, device status, backup arrangements and optional monitoring depend on installed cabinet modules and network interfaces. The product's stated options include DMX512, RDM and Ethernet-related protocols; verify physical port fit-out, protocol commissioning and required electrical safety devices for the selected system.

  • Load power of circuit: 3KW, 4KW, 5KW, 6KW, etc.
  • Power supply: Three-phase five little system, single phase 200-240VAC
  • Frequency: 50Hz or 60Hz
  • Signal interface: 2 x DMX-512, RJ45, RDM, optical fiber (optional)
  • Rise time: 220-350μs
  • Contact resistance of loop: <0.05 Ohm
  • Power consumption: <100W
  • Dielectric strength: ≥2500V/1min
  • Insulation resistance: ≥2MΩ/DC1000V
  • Temperature rise at full load: <50℃
  • Total noise: <60dB

External dimension(mm):

Product model Depth Width Height
60 Circuits 720 515 1720
96 Circuits 720 515 2164



Net weight (kg):

Product model SCR Relay SCR + Relay
60 Circuits 209 176 227
96 Circuits 278 245 306
