Future-Proofing Your Venue: Why Integrated 48 Channel Dimmer Racks are the New Standard (2026 Guide) - RGB

As technical demands in theaters and event spaces evolve, the infrastructure supporting them must adapt. In 2026, the standard for stage power infrastructure has shifted from simple voltage regulation to intelligent, hybrid signal management.

Quick Summary: The State of Power Distribution in 2026

Modern power distribution requires a hybrid approach that simultaneously supports constant power for LEDs and variable voltage for tungsten fixtures. The days of dedicated dimmer rooms are fading in favor of versatile, high-density solutions that save space and increase control.

  • Hybrid Capability: Managing hybrid theatrical lighting systems is the new baseline, requiring racks that can switch individual circuits between dimming and relay modes.
  • Network Intelligence: Integration of sACN and DMX integration allows for real-time feedback and remote configuration.
  • Modular Design: The ability to hot-swap modules ensures that a single component failure doesn't compromise the entire show.
  • Efficiency: Modern 48-channel racks offer superior thermal management, allowing for 100% duty cycles without overheating.

What is a 48-Channel Dimmer Rack, and Why Does It Matter?

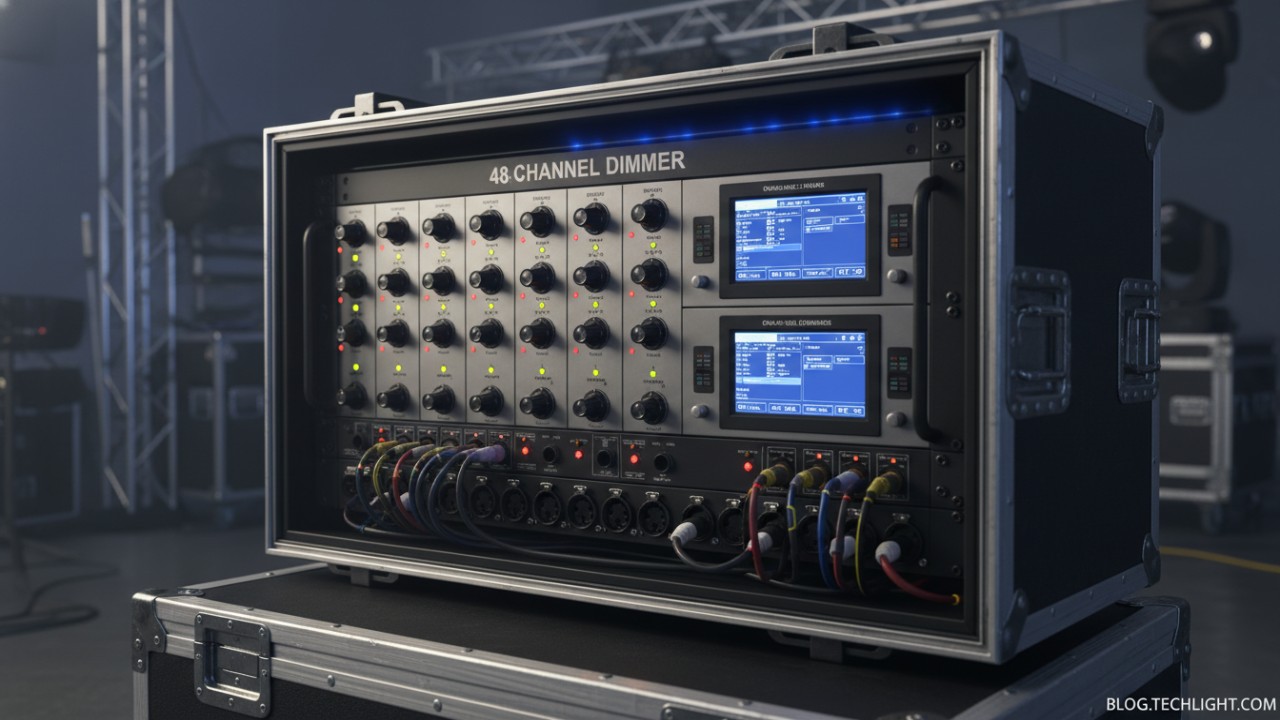

48 channel dimmer rack

A 48-channel dimmer rack is a centralized power control unit that regulates voltage for up to 48 separate lighting circuits, integrating both dimming and relay capabilities into a single footprint. Unlike legacy analog systems, these modern racks act as the brain of the venue's power network.

For companies like Guangzhou RGB Lighting Equipment Co., Ltd., the shift toward these integrated systems represents a move away from passive hardware to active system management. A robust 48-channel rack serves as the critical bridge between the lighting console and the rig, ensuring that delicate electronics in moving heads receive clean, constant power while traditional PARs receive smooth dimming curves.

The Hybrid Challenge: Managing LEDs and Incandescents Simultaneously

The primary challenge in modern venues is preventing the "phantom voltage" leakage from Triac dimmers that causes LED fixtures to flicker or fail.

Legacy dimmers were never designed for the low-load, capacitive nature of LED power supplies. This incompatibility forces venues to adopt ThruPower and relay switching technologies. By utilizing modules that can mechanically bypass the dimming coil, technicians can send pure sine-wave power to intelligent fixtures without repatching cables.

  • Safety First: Using a standard dimmer curve on an LED fixture can destroy its internal power supply unit (PSU).
  • Flexibility: ThruPower modules allow a venue to hang a tungsten Fresnel one day and a moving LED wash the next on the same circuit.
  • Space Saving: Eliminates the need for separate "hard power" distribution boxes (distros) alongside dimmer racks.

Technical Architecture: Cooling, Load, and Connectivity

Effective high-density power distribution relies on efficient thermal load management and high-speed network protocols to maintain system stability under full load.

Designing a rack that packs 48 channels of 2.4 kW or 3 kW power into a portable frame requires rigorous engineering.

  1. Protocol Evolution: While DMX512 remains a backup, primary control has shifted to Ethernet. According to the ESTA Technical Standards Program, protocols like sACN (ANSI E1.31) allow for thousands of universes of data to flow over a single Cat6 cable, providing the bandwidth necessary for complex pixel-mapped rigs.
  2. Thermal Management: Intelligent airflow designs draw cool air across the heat sinks of the SCR or IGBT modules. This is critical because a 98% efficient dimmer still generates significant heat (approx. 20W per 1000W load).
  3. Harmonic Mitigation: Advanced racks now include filtration to reduce harmonic distortion, ensuring compliance with power quality standards.

Expert Tips: Common Mistakes When Upgrading Dimmer Racks

The most frequent error venue managers make is underestimating the total weight load and inrush current requirements of modern digital rigs.

When upgrading to high-density power distribution systems, oversight in planning can lead to structural or electrical failures.

  • Mistake—Ignoring Inrush Current: LED video walls and moving lights draw massive current for a fraction of a second when turned on. If your rack's breakers aren't rated for this "high-magnetic" trip curve, the system will trip immediately.
  • Mistake - Overlooking Weight: A fully loaded 48-channel rack is heavy. Ensure portable racks have casters rated for the specific static and dynamic loads of your venue floors.
  • Tip—Specify Hybrid Modules: Ensure at least 50% of your rack slots support ThruPower and relay switching. This future-proofs the system as you slowly retire tungsten fixtures.

ROI Analysis: The Economics of Upgrading

Upgrading to an intelligent digital dimmer rack typically yields a Return on Investment (ROI) within 3-5 years through reduced maintenance and energy efficiency.

Older analog systems suffer from drift, requiring frequent calibration of voltage regulation cards. In contrast, modern digital systems from manufacturers like Guangzhou RGB Lighting Equipment Co., Ltd. are largely self-calibrating.

  • Energy Savings: Intelligent racks can power down unused circuits completely, removing the "ghost load" of transformers.
  • Reduced Cabling: sACN and DMX integration means running a single Ethernet cable rather than thick bundles of copper DMX wire.
  • Longevity: Digital systems reduce physical wear on components. As noted in the IEEE 519 Standard, maintaining low harmonic distortion also protects the lifespan of all connected audio and video equipment in the venue.

Industry-Leading Solutions: Implementing the RGB Standard

The RGB standard focuses on delivering visualized control systems and intelligent network dimming that exceed generic international safety certifications.

Guangzhou RGB Lighting Equipment Co., Ltd. has been at the forefront of this technology since 1996. Their experience in equipping massive projects, such as the Beijing Olympics and the Shanghai World Expo, demonstrates the critical need for reliability in stage power infrastructure.

  • Visualized Control: RGB's systems offer real-time monitoring of voltage, temperature, and load per channel, visible directly on the rack or via cloud management.
  • Global Certification: With ISO9001 and CE certifications, these racks are built to withstand the rigors of touring and permanent installation alike.
  • Customization: Whether you need a fixed installation for a national theater or a portable touring rack, RGB provides tailored configurations that integrate seamless relay and dimming logic.

Conclusion

The transition to integrated 48-channel dimmer racks is not just an equipment upgrade; it is a fundamental shift toward a safer, more versatile performance environment. By embracing hybrid switching and network integration, venues can secure their technical future against the rapidly changing landscape of production design.

Contact Guangzhou RGB Lighting Equipment Co., Ltd. today to discuss your specific needs and future-proof your venue.
